Product Specifications
DESCRIPTION

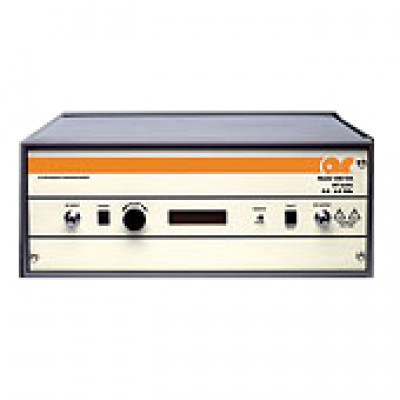

The AR RF/Microwave Instrumentation 60S1G3 is a solid state, self-contained, air-cooled, broadband Aamplifier that comes with a frequency range of 0.8GHz-3GHz, and RF power of 60W.
The following are the specifications of the 60S1G3M3:
  • RATED POWER OUTPUT: 60 watts minimum
  • INPUT FOR RATED OUTPUT: 1.0 milliwatt maximum
  • POWER OUTPUT @ 3dB COMPRESSSION
  • Nominal: 70 watts
  • Minimum: 60 watts
  • POWER OUTPUT @ 1dB COMPRESSION
  • Nominal: 60 watts
  • Minimum: 50 watts
  • FLATNESS: ?1.5 dB typical, ?2.0 dB maximum
  • FREQUENCY RESPONSE: 0.8 - 3.0 GHz instantaneously
  • GAIN (at maximum setting): 48 dB minimum
  • GAIN ADJUSTMENT: (Continuous Range), 10 dB minimum, (4096 steps remote)
  • INPUT IMPEDANCE: 50 ohms, VSWR 2.0:1 maximum
  • OUTPUT IMPEDANCE: 50 ohms, nominal
