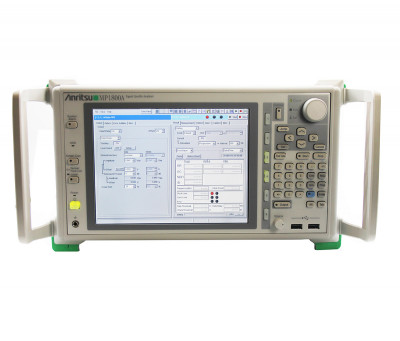

Anritsu MP1800A

DESCRIPTION

The Anritsu MP1800A Signal Quality Analyzer is a highly expandable, plug-in, modular-type, bit error rate tester (BERT). It incorporates a Pulse Pattern Generator module (PPG) for outputting high-quality, high-amplitude signals, as well as an Error Detector module (ED) with high input sensitivity supporting signal analyses, including burst pattern, Bathtub Jitter and EYE Diagram measurements. Various types of jitter, such as SJ, RJ, BUJ, SSC, etc., can be generated using the built-in jitter modulation source, supporting device Jitter Tolerance tests.

Here are some of the technical specifications of the MP1800A:

• Bit-rate: 2.4 Gbit/s to 28.1 Gbit/s, 2.4 Gbit/s to 32.1 Gbit/s (with Option-x01)
• External Clock Input: Number of Input: 1 (Single end), Frequency: 1.2 GHz to 16.05 GHz
• Amplitude: 0.3 Vp-p to 1.0 Vp-p (?6.5 to 4.0 dBm), Termination: 50O/AC Coupling Connector: SMA (f.)
• Aux Input: Number of Input: 1 (Single end), Signal Type: Error Injection, Burst Minimum Pulse Width: 1/128, Input level: 0/?1 V (H: ?0.25 V to 0.05 V, L: ?1.1 V to ?0.8 V), Termination: 50O/GND, Connector: SMA (f.)
• Aux Output: Number of Output: 2 (Differential), Signal Type: 1/n Clock (n = 4, 6, 8, 10 510, 512), Pattern Sync, Burst Out, Output level: 0/?0.6 V (H: ?0.25 V to 0.05 V, L: ?0.80 V to ?0.45 V), Termination: 50O/GND, Connector: SMA (f.)
• Gating Output: Burst, Repeat Timing Signal Output level: 0/?1 V (H: ?0.25 V to 0.05 V, L: ?1.25 V to ?0.8 V), Termination: 50O/GND, Connector: SMA (f.)
