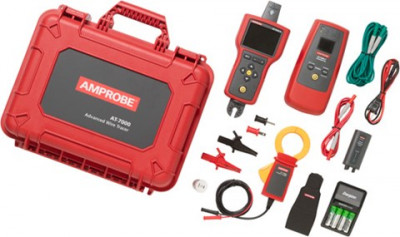

The Receiver's patented Smart Sensor, with its innovative new antenna design and advanced signal processor, clearly displays the location and orientation of energized wires in walls, floors and ceilings on the large color TFT LCD screen. The powerful Transmitter utilizes two optimal frequencies for both energized and de-energized wire and breaker tracing, delivering consistently accurate results for novice users and experts alike. The new Scan and Locate feature clearly identifies the one correct breaker or fuse, eliminating the confusion from multiple false positive readings common in older technology tracing tools.
Features:
Traces wires in walls, ceilings, floors and corners
Locates breakers and fuses
Pinpoints shorts and opens
High resolution 3.5" TFT LCD color display
Three power modes
"High" power mode for normal circuits
"Low" power mode for precision tracing in difficult areas
"Clamp" power mode provides a boosted signal using signal clamp
Two automatically selected frequency modes for optimal tracing on energized and de-energized circuits
Signal booster rechargeable battery pack (BR-7000-T) increases transmitter signal strength
Clamp-on attachment (SC-7000) for inducing signal into wires without access to bare conductors
Embedded help screens make set-up easy and error free
Specifications:
mDDR: 64 MB
FLASH Memory: 128 MB
Audio: 95 dB
Operating Temperature Range: 0 to 120˚F (-17.77 ˚C to 49˚C)
Storage Temperature: -40 to 150˚F (-40 to 65.5˚C)
Operating Humidity: 95% R.H max
Operating altitude: 2000 m
Measurement Category: CAT IV 600 V
Drop Test: 3.28 ft (1 m)
Power Supply: 4x AA Alkaline battery
