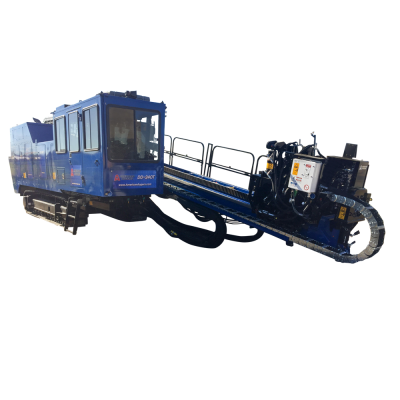

American Augers DD-240T Directional Drill

American Augers DD-240T Directional Drill
Specifications
BRAND  American Augers
MODEL  DD-240T
PRODUCT DESCRIPTION
FEATURES
A truly customer-driven design in a rugged package for tough environments
  • The patented Dual man onboard offboard cab for fitting a wide variety of job sites
  • Full length traveling wrenches to assist those stubborn tool joints and allowing to pull tooling up on the drill frame
  • American Auger’s standard slip spindle that can be easily changed when needed
  • Low spindle center allows the pipe to enter the ground closer to the drill when entering at low angles
  • A new MTU Engine that was designed for Tier 4 Final applications. It does not require a regen cycle and loves it when you work it hard
SPECIFICATIONS
Power Train
  • EngineMTU Tier 4
  • Rating523 HP (390 kW)
  • Fuel Capacity180 U.S. Gallons (681 L)
  • Hydraulic Capacity120 U.S. Gallons (454 L)
  • Hydraulic FilterHigh-Pressure Filtration Return to 6 Micron ABS
Carriage System
  • Maximum Thrust/Pullback240,000 lbs. (120 Tonnes)
  • Carriage SystemRack & Pinion, (4) Pinion Drive with Adjustable Force Limiter
  • Maximum Carriage Speed150 ft. (45.72 m)/minute
  • Carriage Motors(4) Hydraulic 160cc, Radial Piston/Dual Displacement
  • Carriage Brakes(2) Spring Applied/Hydraulic Release
  • Carriage Gearbox(4) Planetary Drives
Rotary Drive
  • Rotary System(2) Pinion & Gear Drive with Infinitely Variable Torque
  • Maximum Rotary Torque43,90 ft-lbs. (59,590 Nm) @ 37 RPM
  • Maximum Rotary Speed150 RPM
  • Rotary Motors(2) Hydraulic, 486cc, Axial Piston, Variable Displacement
  • Rotary Brakes(1) Spring Applied/Hydraulic Release
  • Fluid Course3 in. (76 mm)
  • Mud SwivelRear Mounted, 4 N.P.T.L.H x 3
  • Slip Spindle5.5 in. (139.7 mm) API-IF Pin
  • Other FeaturesDigital Tachometer, Adjustable Torque Limiter, Wiggle Steer®
Wrench
  • Wrench StyleTriple Jaw with 10 in. (245 mm) Separation
  • Maximum Breakout Torque80,000 ft-lbs. (108,465 Nm)
  • Clamp/Grip Range4-1/2 in. to 8-1/2 in. (114 – 216 mm) OD
Drill Rig
  • Drill Angle10° - 18°, wireless tramming and setup
  • Drill Pipe20 ft. or Range II 4-1/2 in. and 5-1/2 in. API pipe
  • Travel System
    Self Propelled on Undercarriage Steel Track Crawler Assembly
    Maximum Travel Speed: 1.4 mph (2.25 kph)
Safety
  • Es!Lok – Exit Side Lockout System with 5,280 ft. (1,609 m) Range
  • ZAPALERT – Electrical Detection Device
  • Engine Shutdown Switch at the Operators Console, Shutdown at Engine Controller, (8) hinged handrails for full-length thrust frame walkway
Dimensions (can vary)
  • Length52.6 ft. (15.08 m)
  • Width98.4 in. (2.5 m) w/ pipe loader option 100.25 in. (2.54 m) w/ full walkway option
  • Height133 in. (3.37 m)
Weights (can vary)
  • Range 2, walkway, 2 man cabin80,520 transport weight (no foot)
  • Range 2, Pipe loader, 2 man cabin81,510 transport weight (no foot)
