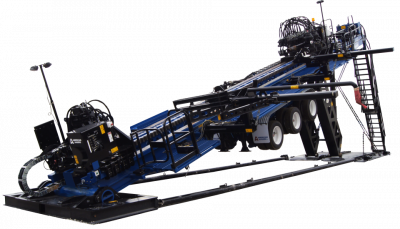

FEATURES
For those contractors who want to play with the big toys
The industry first in rapid setup technology
Up to 1,500 horsepower for the bores with big pipe welded together just waiting to be installed
Excellent speed without sacrificing power
Over 200,000 ft*lbs of breakout torque for those tough pipe joints
4” drill fluid course accommodates up to 1,000 gpm of drill fluid for maximum fluid power
SPECIFICATIONS
Power Train - One Power Pack
Engine Caterpillar C-18 Tier 4i or Tier 3 Diesel (depending on country of purchase)Rating 765 HP (570 kW)Fuel Capacity 650 U.S. Gallons (2,460 L)Hydraulic Capacity 220 U.S. Gallons (833 L)Hydraulic Filter High Pressure Filtration to 6 Micron ABS
Carriage System
Maximum Thrust/Pullback 1,100,000 lbs. (500 Tonnes)Carriage System Rack & Pinion, (6) Pinion and Gear with Adjustable Force LimiterMaximum Carriage Speed 101 ft. (30.7 m)/minuteCarriage Motors (6) 1017 cc Variable DisplacementCarriage Gearbox (6) Planetary DrivesHydraulic Pump (2) Closed Loop-Piston
Rotary Drive
Rotary System (4) Pinion and Gear Drive with Infinitely Variable TorqueMaximum Rotary Torque 100,000 ft-lbs. (135,600 Nm) @ 0 – 31 RPMMinimum Rotary Torque 40,000 ft-lbs. (54,230 Nm) @ 0 – 75 RPMMaximum Rotary Speed 85 RPMRotary Motors (4) 160cc, Axial Piston, Variable DisplacementRotary Brakes (4) Spring Applied, Hydraulic ReleaseFluid Course 4 in. (102 mm)Mud Flow Rate Permits up to 1,000 U.S. Gallons (3,785 L)/per minuteMaximum Mud Pressure 1,500 psi (103 bar)Mud Shutoff Cylinder 2 in. Bore x 12 in. Stroke (51 - 305 mm)Mud Blow Down Cylinder 1 1/16 in. Bore x 4 in. Stroke (27 - 102 mm)Hydraulic Pump (2) Closed Loop-PistonAuxiliary Pump (1) Pressure Compensated-PistonSlip Spindle 8 5/8 in. (219 mm)
Wrench
Wrench Travel Wrench can Travel the Full Length of the Thrust FrameMaximum Breakout Torque 230,000 ft-lbs. (311,800 Nm)Maximum Makeup Torque 100,183 ft-lbs. (135,800 Nm)Clamp/Grip Range 3.5 in.– 10.5 in. (89 – 267 mm) ODWrench Motor (2) Hydraulic, LSHT, 12.5 CIRWrench Brake (1) Spring Applied, Hydraulic Release
Drill Rig
Drill Angle 10° - 18°Drill Pipe Range II – 34 ft. (10.4 m)
Safety
Es!Lok – Exit Side Lockout System with 1 mile (1.6 m) Range
ZAPALERT – Electrical Detection Device
Run on One Technology system (ROOTS)
Freestanding operator’s console with pressure gauges
Operator’s manual and other unit support materials
Drill Rig Dimensions
Length 64 ft. 10 in. (19.5 m)Width 8 ft. 2 in. (2.5 m)Height 11 ft. 10.25 in. (3.6 m)
Single Power Pack
Length 19 ft. 8 in. (5.99 m)Width 8 ft. (2.43 m)Height 9 ft. 5 in. (2.88 m)
Single Power Pack Weight
Total Weight 35,500 lbs. (16,103 kg)
Drill Rig Weight
Total Weight With Wrenches: 112,580 lbs. (51,065 kg)
Dual Power Pack (ROOTS)
Simultaneously run both power units
Permits one power unit to run while powering through the unused power unit
Allows one power unit to run, but keeps the unused power unit isolated
Excercise the ability to have one power unit running, but have the unused power unit removed
Unit maintains full power with single engine, but system runs with half rotational RPM and half carriage drive speed
