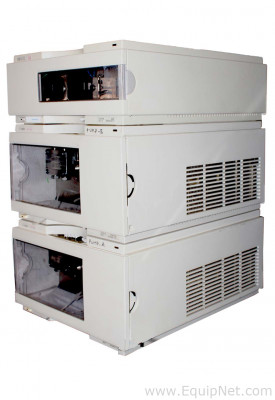

The Agilent 1100 Series preparative autosampler is designed to perform preparative LC. It allows injection of sample volumes from µL to mL ranges from vials. Can be upgraded from non-thermostatted version to thermostatted version by adding the Agilent 1100 Series thermostat for ALS/FC/spotter.
Features
For flow rates up to 100 mL/min at 400 bar.
Injection volume range from 10-900 µlL (options up to 5 mL are available).
Flexible and convenient sample handling with different types of sample containers (2-mL and 6-mL vials).
Peltier temperature control from 4 to 40 °C for up to 100 2-mL vials containing thermally-labile samples (upgrade from non-thermostatted to thermostatted version possible).
The Agilent 1100 Infinity Analytical-scale Fraction Collector is designed for optimized fraction collection for flow rates between 100 µL/min and 10 mL/min. You can combine it with any pump, injector or detector from the 1100 Infinity range, making it ideal when you require fraction collection for your analytical LC system.
Features:
Maximum flow rate: 100 ml / min (depending on viscosity and generated back pressure, max.6 bar at the diverter valve)
Maximum capacity: 3 fraction collectors in parallel plus one recovery fraction collectorconnected via 12-Position, 13-Port Selector valve (PN G1160A)
Full tray with 60 test tubes (25 mm OD, max. height 100 mm, ~25 ml / tube)
Interfaces: Controller-area network (CAN).optional; LAN or external contacts interfaceRS232C, APG-remote (for remote start / stop signals to / from othermodules). Interface to G1330A Thermostat CAN-DC-out for operation ofAgilent approved external devices like valves.
