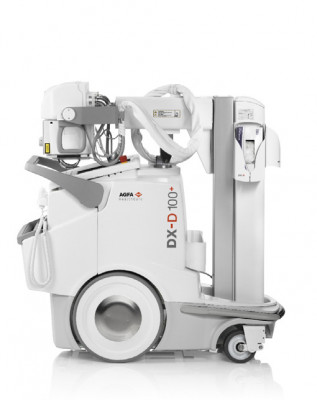

Agfa DX-D 100 Portable X-Ray Machine

DESCRIPTION

Designed for bedside use, DX-D 100 can handle a broad range of general radiography X-ray studies, even for the least mobile patients. The  images are available immediately and can be validated straight away after exposure, with Worlist availability and Dicom Send to Pacs.  The higher productivity and image quality translate into lower cost per exam and higher diagnostic efficiency. Patient ready right out of the crate. New or newer batteries and new DR panel included, along with anytime remote tech support.

ADDITIONAL INFORMATION

• Generator: 40 kW, 40–150 kVp, 0.001–10 second exposure time range, 0.1–500 mAs range, 10–500 mA selectable, 18 mA stations
• Tube arm: 49.2 in (1,250 mm) reach, ± 315° column rotation, 21.6 in (550 mm) minimal SID to floor, 80.7 in (2,050 mm) maximal SID to floor
• Mobile unit: 1,312 lbs (595 kg), 53.54 in x 26.4 in x 77.9 in (1,360 mm x 670 mm x 1,980 mm), 17 in (430 mm) diagonal touch screen console, frontal anti-collision system
• Batteries: Two independent drive motors, one for each wheel, capacitor battery
• Line requirements: Single phase line regulation, 100–240 Vac (+/-10%)
• Detector: IRAY 14x17 Cesium Wireless Detectors
• Dimensions: 53.54 in x 26.4 in x 77.9 in (1,360 mm x 670 mm x 1,980 mm)
• Weight: 1,312 lbs (595 kg)
