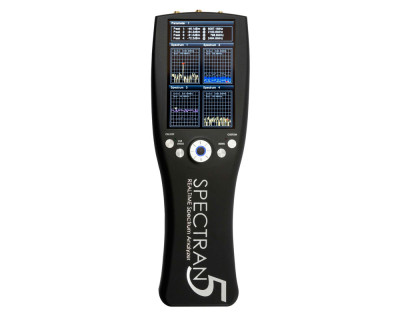

Aaronia Spectran HF80200 V5 Handheld

Aaronia Spectran HF80200 V5 Handheld

Specifications

BRAND	Aaronia
MODEL	HF-80200
PRODUCT DESCRIPTION
Aaronia presents the SPECTRAN V5, a Handheld Real-Time Spectrum Analyzer designed to capture even shortest signal transmissions. With this Spectrum Analyzer you can master all the challenges. Wether it is for spectrum monitoring, RF and microwave measurements, Interference hunting, EMC testing or Wi-Fi and wireless network measurements, the SPECTRAN V5 is the ideal Spectrum Analyzer for making reliable and fast measurements. The included PC analysis software RTSA Suite transforms the V5 into a fully-featured Benchtop Spectrum Analyzer . Available in 4 different versions, the V5 offers a solution for almost every application. ADDITIONAL INFORMATION Product Features: Frequency range: 9 kHz - 20 GHz Real Time Bandwidth - 80 MHz POI below 1μS Real-time I/Q streaming via USB 50 Ohm RF input (SMA) Precision +/- 1.5dB (typ) Sweep speed: up to 14 THz/s DDS-synthesizers that offer up to 800 MSPS I/Q Max. Power at RF input (50Ohm) +20dBm Displayed Average Noise Level (internal pre-amp on) typ. 150 dBm/Hz Color touchscreen display Views - Spectrum, Persistence Spectrum, Spectrogram/Waterfall, Histogram RBW (resolution bandwidth) 1 Hz to 40 MHz Detector - Min, Max, AVG, Peak, QPeak Attenuation Range - 45dB (0.5dB steps incl. pre-amp) Traces - ACT, AVG, MAX, MIN Amplitude accuracy (typ.) +/- 1dB Frequency reference accuracy 0.5ppm Patented polyphase filter technology Patented spectrum analysis (modulated LO)
