PRODUCT DESCRIPTION

Capture
INTEGRATED, INDUSTRIAL-GRADE 3D SCANNER AND SOFTWARE SYSTEMS
Bring physical objects directly into CAD, supercharge your product development process, and automate precise 3D inspection with Capture - the powerful, integrated, industrial-grade 3D scanner and software system.

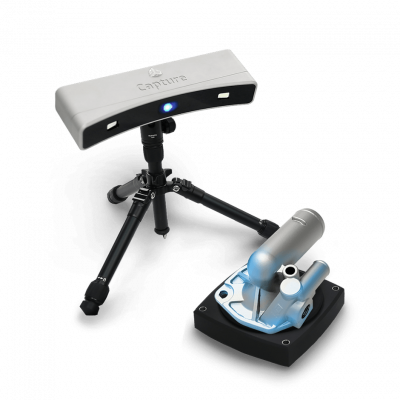

The Capture™ scanners from 3D Systems deliver accurate and fast blue light 3D scanning technology in a portable, lightweight unit that can be hand-held, static and easily combined into a multi-scanner configuration. With the optional ProPack, you can seamlessly add hands-free turntable scanning and transport your scanner safely in a high-quality case. The Capture comes in two models, the Capture and Capture Mini, which are integrated with Geomagic reverse engineering and 3D inspection software for rapid and highly accurate scan-to-3D processes.
Bring physical objects directly into CAD, supercharge your product development process, and automate precise 3D inspection with Capture - the powerful, integrated, industrial-grade 3D scanner and software system.

Geomagic Capture for Scan-Based Design
ENHANCE YOUR CAD SYSTEM
Reverse engineer with style. Geomagic Capture scanners work flawlessly with SOLIDWORKS® via a software plugins and connects via Geomagic Design X to Siemens® NX™, Solid Edge®, Creo®, Pro/ENGINEER® and Autodesk Inventor®. With the power to take scan data directly into CAD, you can design highly complex parts faster via one seamless workflow.
PROFESSIONAL-GRADE, ACCURATE SCANNING
The ultra-compact Geomagic Capture scanners capture precise data using state-of-the-art blue LED technology. The amazing devices capture almost one million points in 0.3 seconds to create detailed models of physical objects, accurate to 0.034-0.118 mm.
POWERED BY PROVEN TECHNOLOGY
Geomagic Capture scanners utilize industry-leading customer-proven technology from Geomagic. With this software, you get the easiest, most powerful scan-based design and reverse engineering software technology combined with proven scanning hardware.
BUILT FOR A VARIETY OF DEMANDING APPLICATIONS
Geomagic Capture portable scanners and flexible software make it a perfect fit for a variety of applications, from heavy-duty manufacturing to industrial design to automotive to jewelry. The new method of Scan-Based Design empowers designers across all industries to swiftly create the type of innovative products that customers demand.
REDUCE INTEGRATION AND TRAINING COSTS
With Geomagic Capture scanners you get one easy-to-use, affordable solution that bridges hardware, software and CAD for your convenience. Because it’s a complete plug-and-play system, you won’t have to burn time incorporating multiple products from multiple vendors into your workflow.

Capture

• Weight: 1.35 kg
• Dimensions: 276 x 74 x 49 mm
• Data Capture Rate: 985,000 points/scan (0.3 sec per scan)
• Resolution: 0.110 mm at 300 mm, 0.180 mm at 480 mm
• Accuracy: 0.060 mm
• Stand-off Distance: 300 mm
• Depth of Field: 180 mm
• Field of View: 124 x 120 mm (near), 190 x 175 mm (far)
• Computer Requirements: Windows 7/8 (64-bit) Operating System, Intel and AMD Quad-core 2-GHz CPU or better, Gigabit Ethernet interface, 4 GB Memory or greater, 512 MB Video Card or better
