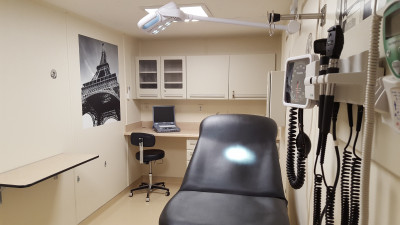

The Primary Care 20 foot Clinic In A Can containerized medical clinic. The clinic is constructed and finished using the exact same material as all of our clinics offerings, which is our standard. The clinic comes with both keyed-lockable floor and wall medical storage cabinetry, 24 inch deep countertop workspace with integrated stainless steel sink and functioning bug screened window. This unit is telemedicine ready with integrated Cat5, COAX & Telephone ports which can be easily be connected to a hardwired or satellite provider.
When coupled with one of our solar systems, this unit design is ideal for working in austere enviornments in an area withou established utilitiy infrastructure like; water, sewer or electricity. For example: a natural disaster, infectious disease outbreaks, concerts, soccer tournaments or any large gathering requiring an autonomously functioning medical facility.
Clinic In A Can specializes in customized medical facilities built within shipping containers. We use cutting edge technology in this process to produce the most durable, dependable and energy-efficient containerized clinics that can be shipped anywhere in the world. We are the best priced units for quality and durability.
The
Clinic In A Can was conceived and designed by medical professionals with extensive field experience working with disaster relief and health services in the United States and in developing nations worldwide. From our work, we realized the acute need for an economical, ready-to-use medical clinic solution, versatile enough to function in many situations throughout the world. As a true turn-key solution, our clinics are ready within minutes to be used.
Key Features
These clinics can be deployed immediately as opposed to the extended time and effort it takes to build a clinic on site
When your clinic is delivered, it is completely equipped and ready to use.
We can build a fully equipped, high-quality clinic at the fraction of the cost of on-site construction.
Our clinics are a dependable solution for your medical care needs. Since our clinics are made from steel containers, they can withstand extreme weather conditions, earthquakes, harsh terrain and security threats. Life expectancy of our clinics is 20 - 30 years.
We use recycled shipping containers and materials to build our clinics. We also offer the customized option of solar energy powered clinics.
- Infection Control Compliant
Armstrong Medical Grade seamless vinyl flooring with flash coving, Midmark Medical Cabinets, Parkland Plastic NRP-FR walls and ceilings and recessed electrical outlets meets and exceed EU and U.S. health code standards and can be cleaned with all bactericidal, fungicidal and virucidal solutions.
The extremely well built structure with R-19 insulation combined with a super energy efficient 9k BTU 25 SEER D/C inverted heat pump creates a cost effective, environmentally controlled work area even in the harshest of hot or cold environments.
Clinic In A Can has been designed, engineered and built by licensed professionals to be the most durable and lowest maintenance containerized clinic product on the market with over 22 years of international experience.
CONSTRUCTION PROCESS:
- Midmark Renew Style steel pressed, powder coated base and 24” tall wall cabinets with integrated locks, stainless steel sink and gooseneck faucet, trash can with integrated trash door
- (1) HVAC 9k BTU D/C Inverted split air conditioner unit with integrated heat pump.
- 5 inches of open cell 1/2lb Icynene foam insulation sprayed in the walls and ceiling resulting in a total R-Value of 19 or RSI of 3.34
- Interior walls framed with 3 inches 20 gauge galvanized steel structural studs.
- Rough plumbing is 1/2 inches PEX tubing with brass fittings
- Armstrong Medley Diamond 10 technology coating, Medical Grade seamless homogenous vinyl flooring with 4 inches of flash coving.
- Walls and ceilings are covered with a 0.55mm full-color thickness Non-FRP washable surface which has been pre-laminated to a 3/8 inch OSB board.
- (2) One Energy Efficient 2 ft X 2 ft flat-panel LED lighting per exam room for a total of (2) LED lights
- Rough electrical uses hospital grade UL listed metal clad 12/2 solid copper wires and galvanized metal boxes
- (6) hospital grade duplex electrical outlets.
- Communication & Telemedicine ready including (1) Cat 5 internal access point, (1) Coax, (optional) (1) Standard telephone with exterior communication port access panel
- Available in 110V or 220V 50/60 Hz options
- External water supply connection, external grey water waste connection
- 23 inch X 23 inch vinyl sliding glass UV window with integrated bug screen.
- CSC certified Container which has been painted with a two-part epoxy white which resists rust and reflects the suns heat.
- Finished Interior Usable Medical Space: 112 square feet or 10.57 sq. meters
- Medical Storage Space: 35 cubic feet or 1 cubic meter of medical storage space
- (1) 180cfm negative pressure exhaust fan for 12 air exchanges per hour. (optional)
- (1) On demand under sink hot water heater (optional)
MEDICAL EQUIPMENT INCLUDED:
- Midmark Ritter 255 LED wall mounted Procedure Light 110/220V 50/60Hz
- Midmark Ritter 204 Exam table 193 cm X 84 cm X 97 cm with Manual Flex Drawer 227 Kg capacity
- Welch Allyn GS 777 PanOptic Opthalmascope, MacroView Otoscope, Wall Aneroid, Kleenspec Specula Dispenser, Sure Temp Plus 690 Thermometer
- Midmark Ritter 277 airlift stool with backrest
- Wall mounted I.V. pole
- Midmark Pebble Grey side and front, RH door, three glove, towel and cup dispenser
- Midmark261 plastic step-on waste bin 42 quarts
- Fire Extinguisher 2.2 Kg Class ABC rechargeable and smoke detector
Final shipping costs not included in the above price but will be quoted upon request.
--
12-MONTH / 1-YEAR MINIMUM RENTAL TERM REQUIRED; customer will be required to pay all (12) Monthly Rental Payments to KWIPPED if an early rental termination request is submitted
