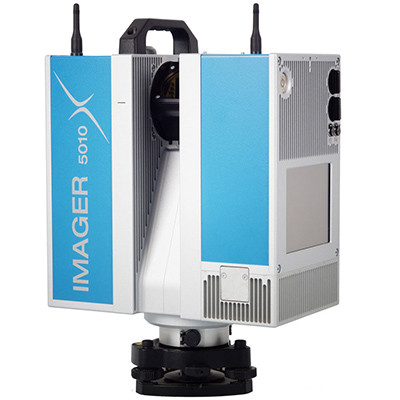

The terrestrial 3D laser scanner Z+F IMAGER® 5010X comes with a unique positioning system which works outdoors and, as an industry-first, also indoors! It will estimate the current position and orientation of the terrestrial 3D scanner to support the registration algorithm to automatically find the correct solution. The scanner will also track your movements while carrying the device on to the next setup and hence provides position estimation for the registration process. You can finish registration on site using the field software (needs windows tablet or PC).
ADDITIONAL INFORMATION
Z+F IMAGER® 5010X is a high end industrial 3D laser scanner which does not have any openings for cooling. It has a passive cooling system, which makes it perfect scanning equipment for dusty and humid environments.
Has a dual axis compensator which helps to correct data on the fly if there is any vibration on the site.
With the integrated HDR camera the scans are colored with perfectly lighted conditions. It is possible to get color information even in the darker areas.
Scanner Specifications
Integrated HDR camera
Laser class: 1
Scanning Range: 187.3 m
Min. measurement distance: 0.3 m
Maximum point spacing: 0.1 mm
Measurement rate: 1.016 million pixels/sec.
Powerful WIFI: comes with 2 wifi antennas for faster data exchange
Comes with total of 2 carrying cases for scanner and charger. Tribrach and Tripod is included in the rental price.
Scanner has a built in software license which can be used for registration / filtering and coloring.
Send your inquiry for stand alone software and other accessories or targets.
