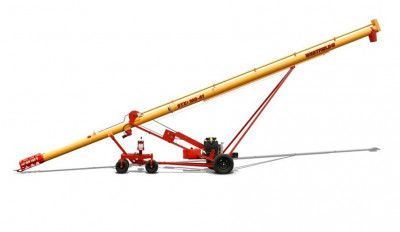

Westfield STX2 Truck Auger

PRODUCT DESCRIPTION

Westfield's redesigned truck auger has been engineered to withstand the demands of farming today. The STX2 was built for durability, longevity and capacity. With the STX2, you’ll get the job done fast.

Built for Durability
The STX2 features a heavy-duty motor mount designed to handle high horsepower, heavy auger engines, giving you the flexibility to use the engine you want. Like all Westfield augers, the flighting includes Wear Edge Technology™, which provides an extra layer of steel welded to the edge at critical wear points. The purpose-built hose routing provides a cleaner sleeker look and protects the hoses from the elements and powder coat paint to protect and provide a long lasting durable finish. The 10" models use square, one-bolt flight connections to ensure the flighting maintains proper alignment for smooth operation.
Designed for High Capacity
The STX2 uses double banded belts that are molded together as one to transfer maximum power from the engine to the gearboxes to maintain consistent speed when the auger is running.
Developed for Ease-of-Use
Westfield's STX2 is designed with end users in mind. The belt tensioner is designed to engage and disengage the flighting and can be adjusted without tools, eliminating the need to lift the motor. The self-leveling motor maintains proper tension at all heights, so there is no need to reset the belt tension once the auger is raised into position. This means there is less slippage so you can get the job done faster.
Low Maintenance
The drive shaft bearings are constructed of durable, oil impregnated hardwood for long, quiet operation and can be easily replaced if needed without disassembling the drive shaft. The bearing brackets are factory jig welded to ensure precise alignment. The chain tensioner on the top drive can be easily adjusted and provides consistent chain drive tension, helping to prolong the life of the chain.
Convenient – Easy to Transport
The STX2 features a quick detach tow hitch that can be stored on the auger so it’s ready to go when you need it. Moving around the yard is easy with the optional heavy-duty mover kit.

HEAVY-DUTY MOVER | The optional self-propelled, heavy-duty mover kit features four-wheel steering and rugged all terrain tires. The controls and steering are conveniently mounted to the side for easy access. The heavy-duty mover kit maneuvers the auger over rough terrain with ease using the manual or hydraulic joystick steering. A standard mover kit is also available.

ELECTRIC CLUTCH WITH REMOTE The electric clutch with remote allows you to start and stop the auger without shutting down gas engine drives

STEEL INTAKE HOPPER The steel intake hopper is self-leveling and has a tapered transition that works with the flighting to direct the flow of grain from the hopper into the auger. The steel intake hopper has a removable access plate for easy cleanout and the flighting features Wear Edge Technology™. The steel intake hopper comes complete with a tow hitch. An optional wheel kit is available and allows the height to be adjusted for positioning.

POLY HOPPER Durable, flexible poly hoppers are available in two sizes; the regular poly hopper is ideal for 8” augers and the larger “V” hopper is available for 10” augers. Poly hoppers provide easy grain handling with minimum spillage.

LED WORKING LIGHTS LED working lights are mounted to the auger to provide extra lighting in low-light situations, allowing you to work longer when needed.

POLY FLEX SPOUT The durable poly flex spout features a five-section flex bucket designed to withstand the elements. Poly spouts help direct grain and prevent spillage so nothing is wasted.
