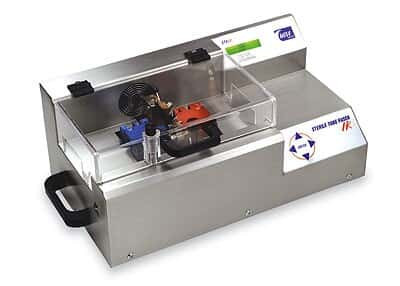

The Wave Sterile Tube Fuser STF IRc is a workhorse in the industry and allows the quick connection of media bags to tanks and disposable containers. The instrument allows for welding of dry tubing from 1/4 to 7/8 inch OD sizes of PharMed™, C-Flex™, Tygon™ and other thermoplastic tubing.This portable Fuser can be used in any part of the process facility and no laminar flow hood is necessary.
ADDITIONAL INFORMATION
Applications
Sterile media transfer
In-process pooling
Connection of bioreactor for feed and harvest.
Pharmaceutical process fluid transfer.
Filling and formulation.
High containment operations.
Features of this instrument include:
Compact design
Capable of welding a variety of types and sizes of thermoplastic tubing.
True thermal weld provides exceptional strength
Aseptic connections without a laminar hood.
User-programmable with LCD display touch pad simplicity
PC interface for data printing and parameter download if needed
Infrared blade temperature sensor.
PTFE-coated blades to ensure strong, reliable welds.
Single-button operator interface
Blade Temperature sensor
Cover lock/sequence button
Intelligent and interchangeable tubing holders
Unique cutting angle
motion control
Specifications:
110/220 VAC (autoswitching)
Dimensions: 10" high x 15" wide x 13" deep
Weight: 35 lbs
Maximum tubing OD: 7/8"
Minimum tubing OD: 1/4"
Fusing cycle: 2 minutes typical (includes heat-up and cool down)
