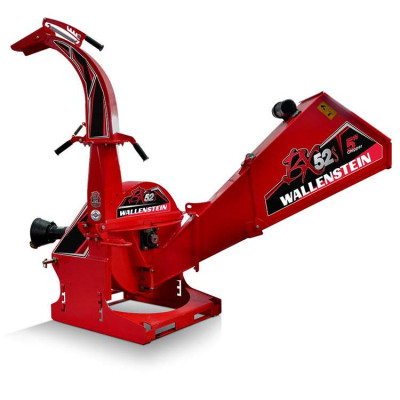

Wallenstein BX52S Wood Chipper

PRODUCT DESCRIPTION

BX52S WOOD CHIPPER
5" Diameter Wood Chipper
Self-Feeding Hopper
PTO Driven Wood Chipper

The self feeding chipper automatically pulls in limbs and branches up to 5” in diameter. Chipping action is powered directly from your tractor’s PTO. Easily fold up the hopper for compact transportation.

FEATURES:

• Oversized Chipping Rotor
• Self Feeding Hopper
• Adjustable Chute
• Reversible Chipping Blades
• iMatch Quick Hitch Compatible
• PTO Drivetrain, Shearbolt protected
• Pick Your Colour
• Adjustable Ski Base
• Fold Up Feed Hopper - No Tools
• Bearing Plate Protection

SPECIFICATIONS:

• DRIVE SYSTEM: DIRECT DRIVE, PTO W/ SHEARBOLT
• HP RANGE: 18 - 50
• HP REQUIREMENTS FOR MAXIMUM CAPACITY: 40 - 45
• CHIPPER CAPACITY : 5" DIA. (MAX. 10" SLAB).
• CHIPPER HOUSING OPENING: 5" X 10"
• ROTOR SIZE: 25”
• NUMBER OF ROTOR KNIVES: 4
• KNIFE TYPE: HARDENED TOOL STEEL
• ROTOR WEIGHT: 125 LBS
• DIMENSIONS LXWXH: 43"L X 55"W X 66"H
• HOPPER OPENING: 20" X 20"
• DISCHARGE HOOD ROTATION: 270°
• DISCHARGE HOOD HEIGHT: 66"
• RATED RPM: 540 - 1000
• WEIGHT: 505 LBS
