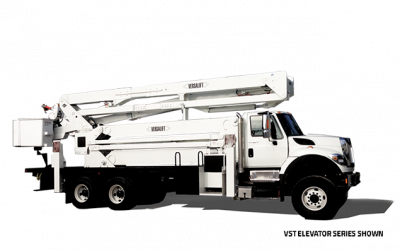

Versalift VO-350-XMHI-E75 Elevator Bucket Truck

DESCRIPTION

BUCKET TRUCK
VO-350-XMHI-E75 ELEVATOR
ELEVATORS
75 ft Insulated Material Handling Overcenter with 25 ft Elevator (X Model)

INDUSTRIES SERVED
Electric Power Distribution, Electric Power Transmission, Electric Utilities

TYPE
Elevators

HEIGHT RANGE
65ft - 100ft

MODEL SERIES
VO

PRODUCT OVERVIEW

• Working Height
  • 80.17 ft (24.38 m)
• Height to Bottom of Platform
  • 75.17 ft (22.86 m)
• Horizontal Reach Overcenter
  • 42.17 ft (12.8 m)
• Horizontal Reach Non-overcenter
  • 39.17 ft (11.89 m)
• Stowed Travel Height
  • 12 ft (3.66 m)
• Platform Capacity
  • 800 lbs (362.87 kg)
• Insulated or Non-insulated
  • Insulated
• Material Handling
  • Yes

SPECIFICATIONS

• HYDRAULIC SYSTEM
  • Hydraulic Controls
    • Full Hydraulic
  • Operating Pressure
    • 3000 psi (210.92 kg/cm²)
  • Flow Rate
    • 8 gpm (30.28 lpm)
  • Filtration
    • 10 micron return | 100 mesh suction
  • System Type
    • Closed Center
  • Power Source
    • PTO Pump
• BOOM
  • Upper Boom Articulation
    • 210°
  • Lower Boom Articulation
    • 125°
  • Upper Boom Insulation Gap
    • 114 in (2.9 m)
  • Lower Boom Insulation Gap
    • 12 in (0.3 m)
  • Lower Boom Lift Eye Capacity
    • 2500 lbs (1133.98 m)
  • Boom Rotation
    • Continuous
• VEHICLE REQUIREMENTS
  • GVWR
    • 50000 lbs (22679.5 kg)
  • Cab to Axle (minimum)
    • 157 in (3.99 m)
• MATERIAL HANDLING OPTIONS
  • Jib & Winch Capacity
    • 2000 lbs (907.18 kg)
