Versalift VO-260-REAR Bucket Truck | Lease/Finance or Buy

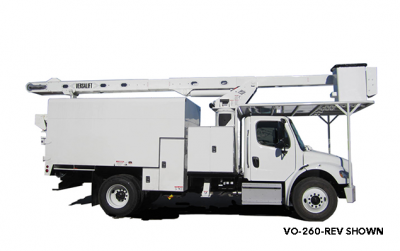

Versalift VO-260-REAR Bucket Truck

Versalift VO-260-REAR Bucket Truck
Product Specifications
DESCRIPTION
BUCKET TRUCK
VO-260-REAR
OVERCENTER
60 ft Insulated Overcenter Articulated Rear Mount

INDUSTRIES SERVED
Electric Power Distribution, Electric Utilities, Tree care

TYPE
Overcenter

HEIGHT RANGE
45ft - 65ft

MODEL SERIES
VO

PRODUCT OVERVIEW
  • Working Height
    • 63.67 ft (19.2 m)
  • Height to Bottom of Platform
    • 58.67 ft (17.68 m)
  • Horizontal Reach Overcenter
    • 50.67 ft (15.24 m)
  • Horizontal Reach Non-overcenter
    • 45.42 ft (13.72 m)
  • Stowed Travel Height
    • 10.58 ft (3.05 m)
  • Platform Capacity
    • 350 lbs (158.76 kg)
  • Insulated or Non-insulated
    • Insulated
  • Material Handling
    • No
SPECIFICATIONS
  • HYDRAULIC SYSTEM
    • Hydraulic Controls
      • Full Hydraulic
    • Operating Pressure
      • 2900 psi (203.89 kg/cm²)
    • Flow Rate
      • 7 gpm (26.5 lpm)
    • Filtration
      • 10 micron return | 100 mesh suction
    • System Type
      • Open Center
    • Power Source
      • PTO Pump
  • BOOM
    • Upper Boom Articulation
      • 245°
    • Lower Boom Articulation
      • 0° to +125°
    • Upper Boom Insulation Gap
      • 214 in (5.44 m)
    • Lower Boom Insulation Gap
      • 18 in (0.46 m)
    • Lower Boom Lift Eye Capacity
      • 1500 lbs (680.39 m)
    • Boom Rotation
      • Continuous
  • VEHICLE REQUIREMENTS
    • GVWR
      • 28000 lbs (12700.52 kg)
    • Cab to Axle (minimum)
      • 102 in (2.59 m)
