Product Description:
Features:

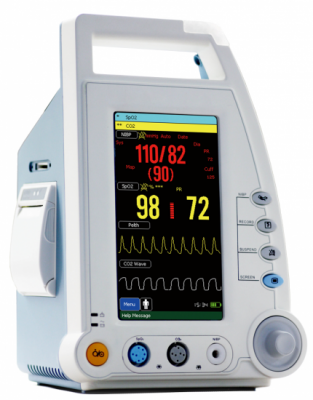

- 7" Color Anti-glare TFT LCD 234×480 pixels resolution
- Resistance to high electromagnetic power and is protected against defibrillation effects
- Large font display for distant visibility
- User friendly operating user interface with feature rich popup menus, dialogue boxes and rotary mouse.
- Digital SpO2 technology offers anti-motion and anti-low perfusion functions
- Audio and visual comprehensive alarm with configurable vital sign limit settings.
- Up to 960 hours of trend data storage
Standard Configuration
NIBP, SpO2/Pulse Rate, Lithium Battery, Built-in thermal recorder
Dimension and Weight
Dimension: 6.3" (W) x10.2" (H) x 5"(D)
Weight: 11 lbs
Warranty: 2 Years (parts and labor) for the main unit, all accessories 6 Months
Specifications:
[NIBP]
Measurement Method: Automatic oscillometry
Patient Types: Adults/Pediatrics/Neonate
Measurement Parameters: Systolic, Mean, Diastolic
Measurement Range: 10-270mmHg
Units of Measurement: mmHg/Kpa
Accuracy:
Static - ±2% or ±3 mmHg, whichever is greater
Clinical - ±5 mmHg average error, <=8 mmHg standard deviation
[Pulse Rate/SpO2]
Display: Digital and PLETH waveform
Measurement Range: 0-100% Resolution: 1%
Pulse Rate Range: 25-255BPM Accuracy: ±1% or ±1 bpm, whichever is greater
Resolution: 1BPM
[Power Requirements] AC:100-240V, 50/60 Hz, 70VA
