Product Description:
Includes two sensors for both Panoramic and Cephalometric operation.

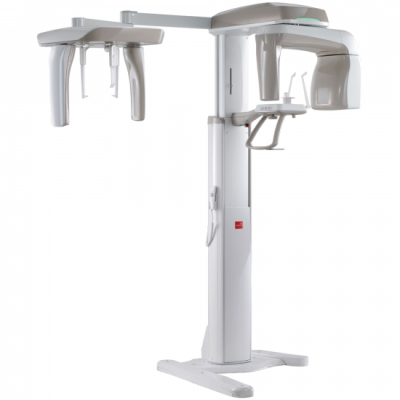

PaX-i - The Prime Choice for Digital Dental Imaging
Simple & Compact Design
PaX-i is small and compact in size and design. It`s designed to fit in the standard X-ray room. No additional space is required.
Versatile LCD Touch Panel
The 10.4inch wide LCD touch panel enables you to operate PaX-i right next to the patient.
In addition, you can detach it to use outside of the X-ray room.
Patient positioning, capturing mode selection and storage of images are possible through the LCD touch panel.
Superb Panoramic Image
With the newest CMOS pano sensor, you can obtain the best panoramic image in about 9 seconds.
EzDent 4.0 - Integrated Program for Diagnosis and Communication with Patient
"EzDent" is easy to learn and convenient to use. It is a communication and patient database tool.
In addition, various image formats are supported (bmp, jpg, tif, dcm, etc).
This program can easily be integrated with other clinical patient management systems.
Specifications
FunctionPano
Exposure TimeTMJ : 3sec
Normal : 9.7sec
High Resolution : 13.5sec
Dimension (WxDxH mm)1115x1150x2200
Weight75kg
GeneratorVoltage : 50-80kVp
Current : 2-10 mA
Focal Spot0.5 mm
Patient PositionStanding/Wheel-chair accessible
FDD(SID)531.2mm
GeneratorContinuous type
Gray Scale14bit
Sensor TypeCMOS
Pixel pitch100μm
Panoramic Programs
- Standard Panoramic Program
Normal / Narrow / Wide program
- High resolution program
- Child program
TMJ Programs
- Lateral / PA TMJ program -Bitewing
- 3 angles TMJ program (i)
Sinus Programs
- Lateral / PA sinus program
- 3 angles sinus program (i)
Special Programs
- Horizontal / Vertical
- segment programs
- Bitewing
- Orthogonal
- Cross-section (i)
* (i) stands for the intelligent mode with AMPT technology
Acquisition computer included
This unit MUST be plugged into a dedicated electrical circuit with breaker to insure consistent current.
Installation Options
- Installed *Additional price*
- No Installation
Vatech Mounting Options
- Wall Mount Support
- Base Plate (shown) *Additional price*
