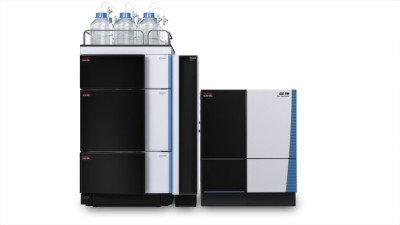

Vanquish Flex UPLC and ISQ-EM Mass Spectrometer

PRODUCT DESCRIPTION

Obtain new benchmarks in accuracy, precision and sensitivity with the Thermo Scientific™ Vanquish™ Flex UHPLC systems. Providing biocompatibility with a state-of-the-art quaternary or binary high-pressure solvent blending, these ultra-high performance liquid chromatography systems share all Vanquish values, such as a design focused on uptime, robustness and reliability. Multiple detection options give you the performance and flexibility you need. These system are ideal for method development or high-throughput analyses and can be seamlessly coupled to a mass spectrometer (MS).
Drives the separation with more flexibility
Extend your capabilities by adding all the flexibility you would expect from leading-edge isocratic, low-pressure quaternary, or high-pressure binary solvent blending. Our SmartFlow pumping technology with automatic compensation for changing eluent compressibility ensures excellent flow and gradient precision, independent of eluent composition and backpressures. This gives you unrivaled data confidence and flexibility in method transfer.

• 1000 bar (15,000 psi) of pump pressure and flow rates up to 8 mL/min
• Industry-leading flow and gradient precision
• 4 solvent channels for quaternary solvent mixing


Obtain more answers from your liquid chromatography by using mass spectrometry and detect a variety of analytes of extended mass range with HESI or APCI. Adding mass spectrometry (MS) to your liquid chromatography (LC) analyses gives you access to the valuable data that only MS can provide. The new, easy-to-use ISQ™ EM Single Quadrupole Mass Spectrometer seamlessly integrates with LC systems for reliable, robust, and easy LC-MS routine analysis with an extended mass range for more flexibility. Detect and quantify a variety of analytes by choosing to use either heated electrospray ionization (HESI) or atmospheric pressure chemical ionization (APCI). Integrated software allows both novices and experts to quickly master MS to gain more insights from every sample. UPLC specifications:
Description: Vanquish Flex Quaternary UHPLC System
For Use With (Equipment): 4 channel quaternary low-pressure gradient
Green Features: Less waste, more energy efficient and responsibly packaged
Sample Temperature Range: 4°C to 40°C in 0.1°C increments
Type: Integrated Biocompatible UHPLC System
Column Temperature Range: 5°C to 120°C in 0.1°C increments (18°C below ambient)
Detector Data Collection Rate: 250 Hz Max.
Max. Pressure: 100 MPa
Solvent Channels: 4

Modules:

• Quaternary pump
• Autosampler - up to 4 plates and/or 4 vial holders
• Diode array detector
• Chromeleon License

cat no. IQLAAAGABHFAPUMBHV
https://www.thermofisher.com/order/catalog/product/IQLAAAGABHFAPUMBHV



Mass spectrometer specifications:
Depth (Metric): 91 cm
Gas Requirements: ≥ 99% Purity Nitrogen capable of supplying 30 L/min at 90 to 110 psig
Height (Metric): 52 cm
Polarity Switching: Yes, 25 ms in HESI
Quantity: Each
Scan Rates: Up to 20,000 Da/sec.
Sensitivity:

• HESI Positive Mode - 10pg Reserpine, 400:1 RMS, at 400μL/min (Selected ion monitoring of m/z 609.3)
• HESI Negative Mode - 20pg p-Nitrophenol, 500:1 RMS, at 400μL/min (Selected ion monitoring of m/z 138.0)

Voltage: 100/240 V, 50/60 Hz
Weight (English): 157 lb.
Weight (Metric): 71 kg
Width (Metric): 42 cm
Mass Range: 10 to 2000 m/z with Unit Mass Resolution
Type: LC-MS, HESI source
Cat no. ISQEM-ESI
https://www.thermofisher.com/order/catalog/product/ISQEM-ESI
