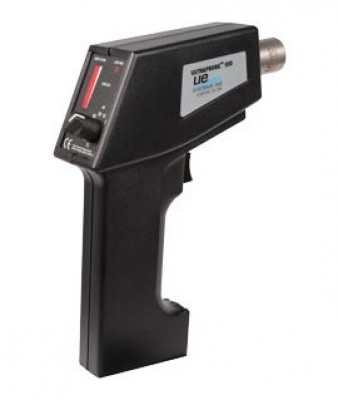

UE Systems UP100SC Ultrasonic Stethoscope/Scanner Leak Detection Kit

PRODUCT DESCRIPTION

Practical tool for any leak detection, steam trap inspection or mechanical troubleshooting program. Ultrasound is very directional and localized. Simple to use - find compressed air and steam leaks and prevent machinery failure.

Features

• Ultrasound can be easily blocked or shielded
• Ultrasound instruments can be used in noisy environments
• Changes in ultrasound provide early warning of potential problems
• 8-position sensitivity dial with decibel indications
• LED bar graph display in which each LED equals approximately 3 dB - ideal for calculating decibel level

Applications

• Pressure & Vacuum Leak Detection
• Valve Seat Leak Detection
• Exhaust System Leaks
• Heat Exchangers/Boilers/Condensers
• Steam Trap Inspection
• Bearing Testing
• Gear/Gear Box Inspection
• General Mechanical Inspection & Trouble Shooting
• Tank/Pipe Leak Testing
• Electrical Inspection

Specifications:

Circuitry:   SMD/Solid state hybrid heterodyne receiver
Frequency Response:   20 to 100 kHz (centred at 38 to 42 kHz)
Indicator:   10 segment LED bargraph (red)
Sensitivity Selection:   8 position precision attenuation

Headset:     Noise isolating type: double headset wired monophonic impedance; 16Ω. Over 23dB noise attenuation. Meets ANSI                                   specifications & OSHA standards

Probes:    Scanning Module (SCM-1): Stainless steel unisonic (single transducer) piezo electric crystal type
                Stethoscope/Contact Module (STM-1): Stainless steel plug-in type with 5.5" stainless steel wave - guide
                Rubber Focusing Probe: Shields stray ultrasonic signals & focuses detected signal

Transmitter:   Patented warble tone transmission
Response Time:   300 m sec
Power Supply:   9V alkaline battery
Dimensions/Weight:   5.25" x 2" x 8" (133 x 50 x 203mm)/11oz (.3kg)
