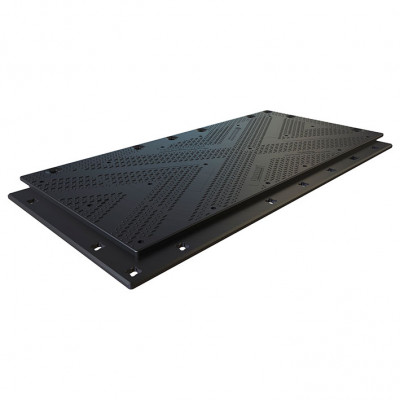

TuffTrak XT Extreme Heavy Duty

PRODUCT DESCRIPTION

TuffTrak® XT is an extreme heavy duty road mat specifically designed for the most challenging ground conditions. The mat features the rugged chevron traction® nub surface that ensures optimal grip in even the most adverse ground conditions. With a 600 psi* compressive load capacity, this extreme temporary ground protection solution can withstand all weather and ground conditions including wetlands, marshlands, peat bogs, and river deltas.
The TuffTrak® XT can be installed quickly and efficiently with our Four3™ camlock connector using a minimum of 2 or up to 16 connection points. The combination of the Four3™ camlock and the overlap connectors lock adjacent mats firmly together creating a monolithic working platform delivering superior strength. This semi-barrier keeps dirt and grime below the surface for a clean and secure working platform. The special format of these connection points creates the opportunity for the positional adjustment of mats allowing various configurations.
TuffTrak® XT is available in black or sand depending on your requirements.  The black mats will retain residual heat meaning snow or ice is less likely to stay on the mats, and the sand colour will not retain heat which is ideal for use in warmer climates.

• High Molecular Weight Polyetyhlene (HMWPE) construction
• Unique chevron traction® surface nub design for maximum grip
• Strengthened overlaps on all sides for additional strength and a secure connection
• 16 connector fixing points allows for multiple mat configurations
• Unique camlock Four3™ connector
• Non-conductive making it ideal for transmission projects
• Tested to -40oC
• 100,000 cyclic wear test
• Pure compressive load capacity 600 psi*
• 50 mats loaded per 40 ft container / truck

Specifications

• Length:4000 mm(13’1”)
• Width:2000 mm(6’8”)
• Depth:90 mm(3.54”)
• Usable Surface Area:6.84 m²(73.62ft²)
• Weight:360 kg(794 Ibs)
