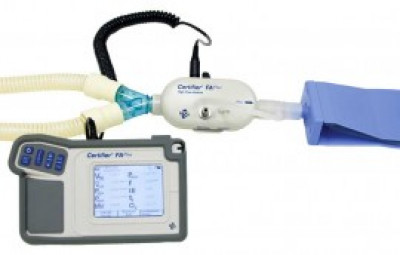

TSI Alnor 4080 Certifier FA Plus Ventilator Flow Analyzer Test System High-Flow Standard Kit

DESCRIPTION

The Certifier FA Plus ventilator test system's compact size makes this ventilator tester ideal for use in field service, biomedical shops, and manufacturing. The fast response and bi-directional sensing sensors makes it capable of testing all types of ventilators including neonatal and high frequency. This ventilator tester is designed to measure air, oxygen, and nitrous oxide flow and pressure in institutional, home care, field service, laboratory, and production applications. Feature Color touch screen graphical user interface Real-time graphing mode Bi-directional flow measurement Data storage using SD Flash card and internal memory Access stored data through USB interface Report printing capability Rechargeable battery plus AC operation Test Parameters Flow Peak & Minimum Flow Volume (Inhaled and Exhaled) Minute Volume Low Pressure (Differential) Peak & PEEP Pressure Mean Airway Pressure Barometric Pressure Inspiratory Time Expiratory Time I:E Ratio Respiratory Rate Gas Temperature Oxygen Concentration (with optional 4073 Kit) What's included with the TSI/Alnor 4080 Interface Module High Flow Module Bacteria Filter, 22 x 22 mm Male/Female 2 x Adapters, 22 x 6 mm Adapter, 15 x 22 mm Airway Pressure Fitting with Screen Pressure Tubing, Silicone, 1/8 x 1/4 x 48" (3.2 mm x 6.4 mm x 122 cm) Velcro Strap High Pressure Port Adapter Flow Module Cable Soft Carrying Case Power Supply 90/260 VAC to 12 VDC 2 x Stylus Certifier® FA Test System Operator's Manual Battery—Lithium-Ion SBL-160 AC NORTH AM./IEC320, Right Angle Connector AC EURO/IEC320, Right Angle Connector AC UK/IEC320 Fuse, Right Angle Connector AC AUST/IEC320, Right Angle Connector SD Flash Memory Card Protective Rubber Boot for Interface Module Computer Cable—USB Standard A to Mini B
