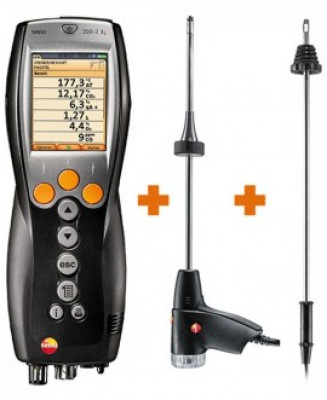

Commercial/Industrial Combustion & NOx kit measures O2, CO (to 30,000ppm), temperature, pressure and other required combustion efficiency parameters.
This model does NOT include Bluetooth printer.
For commercial and industrial boiler combustion analysis, the combustion analyzer is properly outfitted NO sensor to calculate NOX, high range CO, sensor protection, large memory for maintaining service records, and on-site printing capability. The combustion analyzer has the longest sensor warranty on the market - 4 years!. Rugged construction and high quality sensors provide years of reliability and very low cost-of-ownership.
Features
- Graphical readouts display either "in the green" or "in the red" which allows for fine tuning to ensure that adjustments can be made for optimal efficiency
- Memory up to 500,000 readings
- Long Lasting, User-changeable, pre-calibrated sensors that are easily replaceable
- Quick and accurate measurements of O2, CO (up to 30,000 ppm with Standard Dilution System), NO, temperature, pressure, efficiency, and excess air
- Long life sensors(up to six years) with over-range protection
- Industrial CO range of up to 30,000ppm via on board dilution
- Intuitive Graphic Display
- Optional NOx sensor is field upgradeable
Technical Data
Memory: 500.000 values
Storage temperature: -4° to 122 °F (-20 to +50°C) Operating temperature: 23° to 113 °F (-5 to +45°C)
Dimensions: 10.63 x 3.54 x 2.56 inches
Differential Pressure
Measuring range: 0 to 300 inH2O
Accuracy:
0.0 to 20.0 inH2O: ±0.2 inH2O
0.0 to 50.0 hPa: ±0.5 hPa
20.1 to 40 inH2O: ±1% of rdg.
50.1 to 100 hPa: ±1% of rdg.
Remaining range: ±1.5% of rdg.
Resolution: 0.04 inH2O (0.1 hPa)
CO low
Measuring range: 0 to 500 ppm
Accuracy: ±2 ppm (0.0 to 40.0 ppm)
±5% of rdg. (remaining range)
Resolution: 0.1 ppm
NO measurement (electrochemical)
Measuring range: 0 to 3000 ppm
Accuracy: ±5 ppm (0 to 100 ppm)
±5% of rdg. (101 to 2000 ppm)
±10% of rdg. (2001 to 3000 ppm)
Resolution: 1 ppm
O2 measurement (electrochemical)
Measuring range: 0 to 21 Vol. %
Accuracy: ±0.2 Vol. %
Resolution: 0.1 Vol. %
Exhaust Gas Measurements
Measuring range: 0 to 99.9%
Resolution: 0.1%
Draft Measurments
Measuring range: -4.01 to 16.05 inH2O (-9.999 to +40 hPa)
Accuracy: ±0.02 ppm or ±5% of rdg. (-.20 to .24 inH2O) (-0.50 to 0.60 hPa)
±0.03 hPa (.24 to 1.20 inH2O) (0.61 to 3.00 hPa)
±1.5% of rdg. (1.20 to 16 inH2O) (3.01 to 40.00 hPa)
Resolution: 0.004 inH2O (0.01 hPa)
CO measurement (electrochemical)
Measuring range: 0 to 8000 ppm
Accuracy: ±10 ppm or ±10% of rdg. (0 to 200 ppm)
±20 ppm or ±5% of rdg. (201 to 2000 ppm)
±10% of rdg. (2001 to 8000 ppm)
Resolution: 1 ppm
CO2
Measuring range: 0 to 1 Vol. % ; 0 to 10.000 ppm
Accuracy: ±(50 ppm ±2% of rdg.) (0 to 5000 ppm)
Reaction time: Approx. 35 sec.
CO
Measuring range: 0 to 500 ppm
Accuracy: ±5 ppm (0 to 100 ppm)
±5% of rdg. (>100 ppm)
Resolution: 1 ppm
Reaction time: Approx. 35 sec.
Efficiency Measurment (ETA)
Measuring range: 0 to 120%
Resolution: 0.1%
Type K
Measuring range: -40 to 2192 °F (-40 to +1200 °C)
Accuracy (relative): ±0.5 °F (32 to 212 °F) / (±0.5 °C (0 to +100 °C)) ±0.5 % of rdg. (remaining range)
Resolution: 0.1 °F (-40 to 1832 °F) / 1 °F (remaining range)
CO-2 Determination
Measuring range: 0 to CO2 max
Accuracy: ±0.2 Vol. %
Resolution: 0.1 Vol. %
Reaction time: < 40 sec.
