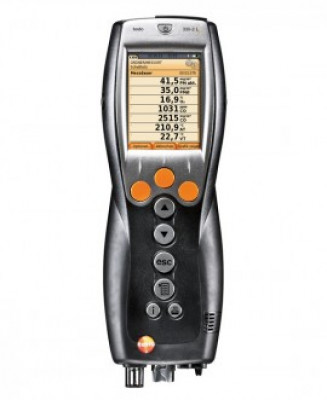

The Testo 330-1G LL Kit 2 combustion analyzer with printer has easy to read graphical curves, easy-to-understand symbols, and a clear color display. The pre-calibrated sensors allow for you to begin your measurements without wasting time.
Features
- Graphical readouts display either "in the green" or "in the red" which allows for fine tuning to ensure that adjustments can be made for optimal efficiency
- Memory up to 500,000 readings
- Long lasting, user-changeable, pre-calibrated sensors that are easily replaceable
- Quick and accurate measurements of O2, CO (up to 30,000 ppm with Standard Dilution System), °F, pressure, efficiency, and excess air
Testo 330-1G LL Kit #2 Technical Specifications:
Memory: 500.000 values
Storage temperature: -4° to 122 °F (-20 to +50°C)
Operating temperature: 23° to 113 °F (-5 to +45°C)
Dimensions: 10.63 x 3.54 x 2.56 inches
Differential Pressure
Measuring range: 0 to 300 inH2O
Accuracy: ±0.2 inH2O (0.0 to 20.0 inH2O) / ( ±0.5 hPa (0.0 to 50.0 hPa))
±1% of rdg. (20.1 to 40 inH2O) / (±1% of rdg. (50.1 to 100 hPa))
±1.5% of rdg. (remaining range)
Resolution: 0.04 inH2O (0.1 hPa)
CO low
Measuring range: 0 to 500 ppm
Accuracy: ±2 ppm (0.0 to 40.0 ppm), ±5% of rdg. (remaining range)
Resolution: 0.1 ppm
O2 measurement (electrochemical)
Measuring range: 0 to 21 Vol. % Accuracy: ±0.2 Vol. % Resolution: 0.1 Vol. %
Exhaust Gas Measurement
Measuring range: 0 to 99.9% Resolution: 0.1%
Draft Measurement
Measuring range: -4.01 to 16.05 inH2O (-9.999 to +40 hPa)
Accuracy: ±0.02 ppm or ±5% of rdg. (-.20 to .24 inH2O) (-0.50 to 0.60 hPa)
±0.03 hPa (.24 to 1.20 inH2O) (0.61 to 3.00 hPa)
±1.5% of rdg. (1.20 to 16 inH2O) (3.01 to 40.00 hPa)
Resolution: 0.004 inH2O (0.01 hPa)
CO measurement (electrochemical)
Measuring range: 0 to 8000 ppm
Accuracy: ±10 ppm or ±10% of rdg. (0 to 200 ppm), ±20 ppm or ±5% of rdg. (201 to 2000 ppm), ±10% of rdg. (2001 to 8000 ppm)
Resolution: 1 ppm
CO2
Measuring range: 0 to 1 Vol. % , 0 to 10.000 ppm
Accuracy: ±(50 ppm ±2% of rdg.) (0 to 5000 ppm) Reaction time: Approx. 35 sec.
CO
Measuring range: 0 to 500 ppm Accuracy: ±5 ppm (0 to 100 ppm), ±5% of rdg. (>100 ppm)
Resolution: 1 ppm Reaction time:Approx. 35 sec.
Efficency Measurement (ETA)
Measuring range: 0 to 120% Resolution: 0.1%
Type K
Measuring range: -40 to 2192 °F (-40 to +1200 °C)
Accuracy (relative): ±0.5 °F (32 to 212 °F) / (±0.5 °C (0 to +100 °C)) ±0.5 % of rdg. (remaining range)
Resolution: 0.1 °F (-40 to 1832 °F) / (0.1 °C (-40 to +999.9 °C)) 1 ° (remaining range)
CO2-determination
Measuring range: 0 to CO2 max Accuracy: ±0.2 Vol. %
Resolution: 0.1 Vol. % Reaction time: < 40 sec.
