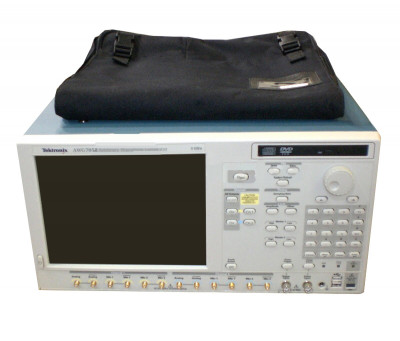

Tektronix AWG7052

DESCRIPTION

10 GS/s (20 GS/s) and 5 GS/s models 1 or 2 Arbitrary Waveform Outputs Accurate Timing with only 20 psp-p Total Jitter (at 10-12 BER, Typical) 45 ps Tr/Tf (20% to 80%) ?100 ps Range (1 ps Resolution) Inter Channel Skew Control 2 or 4 Variable Level Marker Outputs Accurate Timing with only 30 psp-p Total Jitter (at 10-12 BER, Typical) 45 ps Tr/Tf (20% to 80%) Up to 300 ps Range (1 ps Resolution) Delay Control Vertical Resolution up to 10-Bit Available: 10-Bits (No Marker Output) or 8-Bits (with Two Marker Outputs) Up to 64 M (64,800,000) Point Record Length Provides Longer Data Streams Down to 100 fs Resolution Edge Timing Shift Control Sequencing Creates Infinite Waveform Loops, Jumps and Conditional Branches Real-time Sequencing Creates Infinite Waveform Loops, Jumps, and Conditional Branches Intuitive User Interface Shortens Test Time Integrated PC Supports Network Integration and Provides a Built-in DVD, Removable Hard Drive, LAN, and USB Ports
