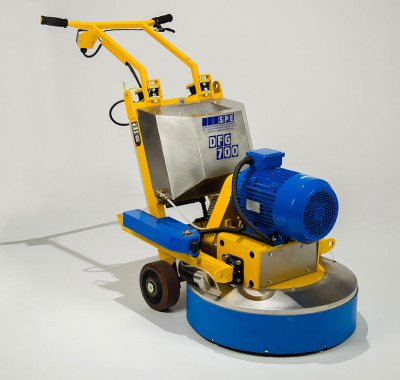

The Heavy Duty Triple Head Planetary Floor Grinder!
THE DFG 700 Triple Head Planetary Floor Grinder has been developed to meet the increasing demand for this principle and grinding materials to a finished product.
700mm (27.6″) working width triple head planetary grinder with single or twin speed design
Very high production rates on large areas
Pivotal weights and quick release drive plate system
Heavy duty gearbox drive
Grinding heads supported by multi directional flexible coupling
Variable grinding speed
Robust construction
Anti vibration handle bar mount
Quick release drive plate system
Pivotal weights
Can be used with conventional DFG Diamond Plates
Description
The DFG700 has all the benefits of the popular single and twin head DFG machine but also allows the operator to grind large areas to a fine finish eliminating swirl marks that can be left by conventional grinding methods.
The Main drive plate is driven through a heavy gearbox and each grinding tool is then turned independently at an increased RPM. The DFG700 has a variable speed control devised to suit various applications.
Environmental considerations are fully controlled with an adjustable dust extraction skirt for dry use and a facility for using water when wet grinding.
A major advantage of the DFG700 is the option of a 3-phase electric motor or gasoline/diesel powered engines. This gives a unique versatility for outdoor use or when electrical power may not be available.
Typical Applications
Accurate grinding of large concrete areas
Re profiling of old concrete floors
Removal of old coating and contaminates
Grinding and finishing of resin based and tiled terrazzo
