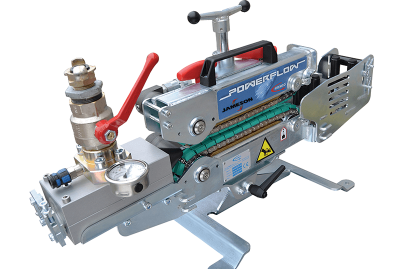

Fiber Blowing Machine For Backbone and Access Network. Fiber Blowing Machine with Long Run Power and Simplicity. Install With Air Or Water. Easy to operate, the PowerFlow uses air or water to install fiber optic cable at a distance over six miles at speeds up to 260 ft./min.
- Water assisted blowing provides higher pressures suitable for larger cable or longer runs
- Easily adapts to various cable and duct sizes common to backbone installation
- Adjustable base tilts to accommodate duct entrance angle
Fiber/Cable (OD): 1 8-25 mm
Duct Diameter (OD): 18-70 mm
Drive Power: Hydraulic
Install Speed (Max.): Up To 260 ft/min (80 m/min)
Pushing Force: 0-276 lb (0-125 kg)
Blowing Distance (Max.:) Up To 32,810 ft (10000 m)
Dimensions (L x W x H): 25.6 x 9.0 x 13.8 in (650 x 230 x 350 mm)
Weight: 83.8 lb (38 kg)
ADDITIONAL INFORMATION
FEATURES
- Robust design constructed for reliable performance in tough environments
- Simple setup and user-friendly machine operation – Forward/Reverse drive modes
