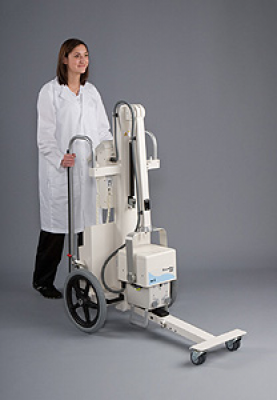

Source Ray PowerMax 1260 Portable digital X-Ray System

DESCRIPTION

Source-Ray PowerMax 1260The model PowerMax 1260 was designed with agility in mind. Its compact, lightweight construction makes it easy for the operator to move the system effortlessly. Delivering maxium mR/mAs, the PowerMax 1260 produces 3kW of power across the entire kV range. With its constant 3kW output, the PowerMax 1260 provides hospital quality imaging and offers an easy upgrade path for clinical sites transititioning to Digital Imaging.

ADDITIONAL INFORMATION

• SpecificationGeneratorHigh frequency Resonant Inverter
• Power3.0kw Output - Fully Regulated mA / kVp
• Input Voltage110 - 230 VAC 50/60 Hz
• KVP Range40-120 kVp, Adjustable in 1 kVp
• increments - closed loop regulation
• Power Factor Correction
• MA RangeAdjustable, 15 - 60mA Closed loop regulation
• MAS Range0.125 - 200
• Exposure Time0.01 - 3.33 Seconds
• IndicatorsDigital display of kVp, mAs and Exposure Time X-Ray, Ready,
• mA Station and Fault indicators
• Filtration3.6 mm al minimum @ 100kVp 4.3 mm al minimum @ 120kVp
• Exposure SwitchDetachable two-position
• X-Ray TubeStationary anode 130 kVp
• Target MaterialTungsten
• Anode Capacity30,000 HU Storage
• Focal Spot1.2 mm
• Target Angle15°
• Collimare CP-100-24-C15 - 35°C, 30 - 85% RH (non-condensing)
• Laser CrosshairsCenter Locator
• Tape MeasureSID Measurement
• InclinnometerAngle Measurement
• Exposure Switch2 Position - Prep/X-Ray
• Model SR-1260 Travel Stand
• Minimum F/S to Floor13" / 33 cm
• Maximum F/S to Floor78" x 198 cm
• Horizonal Ext. of F/S21" / 53 cm21" / 53 cm
• Horizontal Rotation200°
• Tube Rotationor270°
• SID13" - 78" (from floor)
• Wheels16" Inflatable - Heavy duty Casters
• System Weight110 lbs. / 50 kg
• Product ComplianceFDA 510 (k)
