Siemens Siremobil C-Arm | Rent, Finance, or Buy

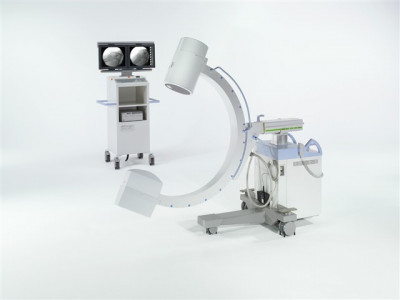

Siemens Siremobil Compact L C-Arm

Siemens Siremobil Compact L C-Arm
Product Specifications
BRAND  Siemens
MODEL  Siremobil
IMAGE INTENSIFIER 9
APPLICATION Orthopedic
APPLICATION Pain Management
DESCRIPTION
The Siemens Siremobil Compact L c-Arm has an excellent performance in intraoperative imaging. The system is a user-friendly integration into clinical workflows.
ADDITIONAL INFORMATION
  • Features include versatile, compact size, high image quality, single key operation, highly mobile, dual-mode 9/6 with Digistore 100 and laser targeting.
  • Suitable for various surgical applications in general surgery, orthopedics, trauma, pain management, and ambulatory care.
  • Specifications include 130 degrees orbital movement, +/-190 degrees angulation, 20 cm horizontal movement, 73 cm immersion depth, +/-12.5 degrees swivel range, 45 cm motorized vertical travel source I.I distance of 100 cm and 78 cm free space. X-ray generator has 15 to 30 kHz converter control frequency, 40 kV to 110kV range, 0.2 to 12.2 mA digital radiography and a maximum of 20 mA cassette exposures. Other specifications include stationary X-ray tube anode, 1.4 kW maximum output, 50,000 HU anode heat capacity, 1,200,000 HU housing heat capacity, 40 to 110 kV range, up to 20 mA range, pulsed fluoro, maximum 2 pulses per second and 1,024 x 1,024 image matrix size.
SPECIFICATION OVERVIEW:
  • 130 degrees orbital movement
  • +/-190 degrees angulation
  • 20 cm horizontal movement
  • 73 cm immersion depth
  • +/-12.5 degrees swivel range
  • 45 cm motorized vertical travel source
  • X-ray generator has 15 to 30 kHz converter control frequency
  • 40 kV to 110kV range
  • 0.2 to 12.2 mA digital radiography
  • Maximum of 20 mA cassette exposures.
  • Stationary X-ray tube anode
  • 1.4 kW maximum output
  • 50,000 HU anode heat capacity
  • 1,200,000 HU housing heat capacity
  • 40 to 110 kV range
  • Up to 20 mA range
  • Pulsed fluoro, maximum 2 pulses per second
  • 1,024 x 1,024 image matrix size
