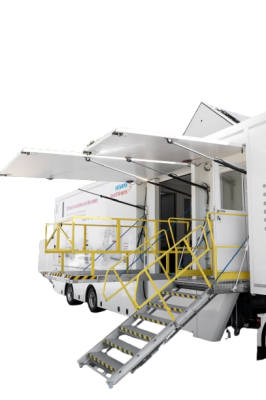

Siemens Artis zee Mobile Cath Lab Trailer

Siemens Artis zee Mobile Cath Lab Trailer
Product Specifications
BRAND  Siemens
MODEL  Artis Zee
DESCRIPTION
The Siemens Artis zee Mobile Cath Lab Trailer is a fully integrated, high-performance interventional imaging solution designed to deliver clinical-grade cath lab capabilities in a mobile environment. Built around Siemens’ Artis zee system, it combines advanced imaging technology, a powerful generator, and a comprehensive software suite to support both cardiac and vascular procedures. With dual slide-outs creating one of the largest procedure rooms available, this unit ensures optimal workflow, comfort, and efficiency for healthcare teams while maintaining full clinical readiness.
ADDITIONAL INFORMATION
  • Siemens Artis zee interventional imaging system
  • 40 x 30 cm HDR flat-panel detector
  • 55-inch large-format display monitor
  • Six imaging modes for clinical flexibility
  • 100 kW generator for high-performance imaging
  • Advanced imaging software (fluoro loop, DSA, cardiac acquisition, QVA)
  • ECG recording and worklist integration
  • Dual full-room slide-outs for expanded procedure space
  • Largest mobile procedure room configuration
  • Medrad Mark VII injector system
  • Hydraulic patient lift for patient handling
  • Integrated medical gas systems
  • Data and phone connectivity systems
  • FM200 fire suppression system
  • Ceiling-suspended lead shielding
  • Lead-lined procedure room for radiation safety
  • Designed for mobile, temporary, or supplemental cath lab use
SPECIFICATIONS
  • General
    • Model: Artis zee Mobile Cath Lab
    • Type: Mobile interventional imaging system
  • Imaging
    • Detector: 40 x 30 cm HDR flat-panel
    • Imaging Modes: 6
    • Applications: Cardiac and vascular imaging
  • Electrical
    • Generator: 100 kW
  • Display
    • Monitor: 55” large-format display
  • System Features
    • Software: DSA, fluoro loop, cardiac acquisition, QVA
    • Integration: ECG recording, worklist system
  • Trailer Configuration
    • Layout: Dual slide-out expanded procedure room
    • Shielding: Lead-lined room with suspended shielding
    • Fire Protection: FM200 system
  • Equipment
    • Injector: Medrad Mark VII
    • Patient Handling: Hydraulic lift
    • Utilities: Medical gases, data, and phone systems
