SCI 4000 Series

PRODUCT DESCRIPTION

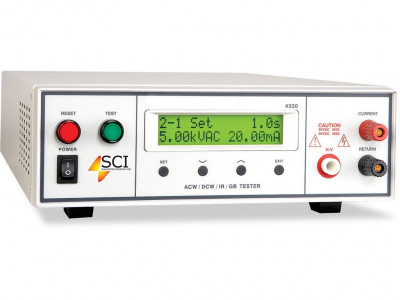

The 4000 Series provides advanced 4-in-1 test capability in a convenient one-box solution. Our most popular multi-function tester, the 4000 Series performs AC Hipot (500 VA), DC Hipot, Insulation Resistance and Ground Bond / Ground Continuity tests while taking up minimal production line space. The 4000 Series includes the most intuitive menu system in the industry, reducing setup time and increasing production line throughput for any application. With multiple memories and an optional RS-232 interface, you can quickly perform tests on a variety of DUT’s from the front panel or with a PC.

INPUT

• Voltage
  • 4320 115/230 VAC ± 15%, user selection
  • 4520 115/230V Auto Range, ± 15% variation
• Frequency 50/60 Hz ± 5%
• Fuse
  • 4320 6.3 A 250 V slow blow
  • 4520 15 A slow blow 250 VAC

DIELECTRIC WITHSTAND TEST MODE

• Output Rating
  • 4320 5 kV @ 20 mAAC 6 kV @ 5 mADC
  • 4520 5 kV @ 100 mAAC 6 kV @ 10 mADC
• Voltage Setting/ Display
  • Range:
    • 0 - 5.00 kVAC
    • 0 - 6.00 kVDC
  • Resoultion:
    • 0.01 kV
  • Acccuracy
    • ± (2% of setting + 5 V)
    • ± (2% of reading + 10 V)
• Current Display
  • 4320
    • Range: 0 - 20.00 mAAC, 0 - 5.00 mADC
    • Resolution: 0.01 mA
    • Accuracy: ± (2% of reading + 0.02 mA)
  • 4520
    • Range: 0 - 99.99 mAAC, 0 - 10.00 mADC
    • Resolution: 0.01 mA
    • Accuracy: ± (2% of reading + 0.06 mA)
• HI-Limit LO-Limit
  • 4320 AC
    • Range: 0 - 20.00 mA
    • Resolution: 0.01 mA
    • Accuracy: ± (2% of setting + 0.02 mA)
  • 4320 DC
    • Range: 0 - 5.00 mA
    • Resolution: 0.01 mA
    • Accuracy: ± (2% of setting + 0.02 mA)
  • 4520 AC
    • Range: 0 - 99.99 mAAC
    • Resolution: 0.01 mA
    • Accuracy: ± (2% of reading + 0.06 mA)
  • 4520 DC
    • Range: 0 - 10.00 mADC
    • Resolution: 0.01 mA
    • Accuracy: ± (2% of reading + 0.06 mA)
• Failure Detector
  • Audible and Visual
• DC Output Ripple
  • 4320
    • < 5% Ripple RMS at 6 kVDC @ 5 mA, resistive load
  • 4520
    • ≤ 5% Ripple RMS at 6 KVDC @ 10 mA, resistive load
• Discharge Time ≤ 200 ms
• Max. Capacitive Load in DC Mode
  • 1.00 uF < 1 kV 0.08 uF < 4 kV
  • 0.75 uF < 2 kV 0.04 uF < 5 kV
  • 0.50 uF < 3 kV 0.01 uF < 6 kV
• AC Wave Form
  • Sine Wave distortion <2%, Crest Factor = 1.3 - 1.5
• AC Output Frequency Range: 50/60 Hz, user selection
• Output Regulation ± (1% of setting + 5 V) from no load to full load
• Dwell Timer
  • Range: 0, 0.2 - 999.9 sec, (0 = continuous)
  • Resolution: 0.1 sec increments
  • Accuracy: ± (0.1% + 0.05 sec)
• Ramp Timer
  • Range: 0.1 - 999.9 sec
  • Resolution: 0.1 sec increments
  • Accuracy: ± (0.1% + 0.05 sec)

INSULATION RESISTANCE TEST MODE

• Output Voltage
  • Range: 100 - 1000 VDC
  • Resolution:  1 V
  • Accuracy: ± (2% of reading + 5 V)
• Voltage Display
  • Range: 0 - 1000 V
  • Resolution: 1 V
  • Accuracy:  ± (2% of reading + 2 V)
• Resistance Display
  • Range: 1 - 1000 MΩ (4 digit, auto ranging)
  • Resolution: 500 VDC 1000 VDC
• Hi-Limit
  • Range: 0, 1 - 1000 MΩ (0 = off)
• LO-Limit
  • Range: 1 - 1000 MΩ
• Delay Timer
  • Range: 0, 0.5 - 999.9 sec, (0 = continuous)
  • Resolution: 0.1 sec
  • Accuracy:  ± (0.1% of 0.05 sec)

GROUND BOND TEST MODE

• Output Voltage
  • Range: 6 VAC fixed
• Output Frequency
  • Range: 50/60 Hz, user selectable
• Output Current
  • Range: 3.0 - 30.0 AAC
  • Resolution: 0.1 A
  • Accuracy:  ± (2% of setting + 0.02 A)
• Current Display
  • Range: 0 - 30.0 A
  • Resolution: 0.1 A
  • Accuracy:  ± (3% of reading + 0.01 A)
• HI-Limit LO-Limit
  • Range: 0 - 510 mΩ for 3.0 - 10.0 A 0 - 200 mΩ for 10.1 - 25.0 A 0 - 150 mΩ for 25.1 - 30.0 A
  • Resolution: 1 mΩ
  • Accuracy: ± (2% of setting + 2 mΩ)
• Dwell Timer
  • Range: 0, 0.5 - 999.9 sec, (0 = continuous)
  • Resolution:  0.1 sec
  • Accuracy:  ± (0.1% + 0.05 sec)
• Milliohm Offset
  • Max. Offset Capability: 0 - 100 mΩ
  • Resolution: 1 mΩ
  • Accuracy:   ± (2% of setting + 2 mΩ)

GENERAL SPECIFICATIONS

• Memories
  • Allows storage of up to 6 different test programs and 6 steps per memory and a single step mode
• Remote I/O
  • Input: Test, Reset, Interlock & recall memory 1-6
  • Output: Pass, Fail, Test-In-Process
• Interface
  • Optional RS-232
• Security
  • Lockout capability to avoid unauthorized access to test set-up programs
• Calibration
  • Software & adjustments made through front panel
• Mechanical
  • Bench or rack mount with tilt up front feet (4520 Only)
• Dimensions (W x H x D)
  • 4320 11" x 3.5" x 17" (280 x 89 x 430 mm)
  • 4520 16.9" x 5.2" x 15.7" (430 x 133 x 400 mm)
• Weight
  • 4320 33 lbs. (15 kg)
  • 4520 54 lbs. (24.5 kg)
