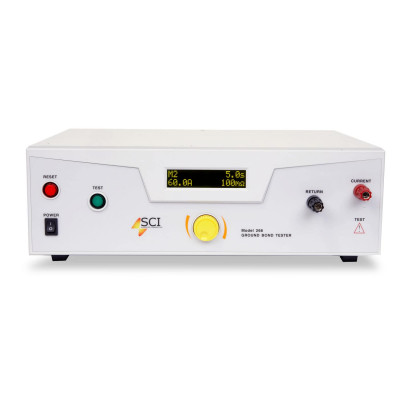

SCI 260 Series

PRODUCT DESCRIPTION

Our 260 Series makes Ground Bond testing simple. We offer two models so that you can have a simple and easy-to-use Ground Bond tester that provides the output current you need to satisfy NRTL specifications. With an intuitive interface that allows you to set-up a test in seconds and practical security settings, our 260 Series can easily be deployed in both laboratory and production line environments.

INPUT

• Voltage
  • 264 100 - 120 VAC / 200 - 240 VAC ± 10% Auto Range
  • 266 100 - 240 VAC ± 10% Full Range
• Frequency
  • 50/60 Hz ± 5%
• Fuse
  • 264 10A / 250 VAC Slow-Blow
  • 266 12A / 250 VAC Slow-Blow

GROUND BOND TEST MODE

• Output Rating
  • 264 3.0 - 40.0 AAC
  • 266 3.0 - 60.0 AAC
  • Resolution: 0.1 A
  • Accuracy: ± (2% of setting + 0.1A)
  • 264 Voltage 8 VAC (fixed)
  • 266 Voltage 12 VAC (fixed)
• Output Frequency
  • 50/60 Hz user selectable Accuracy: ± 0.1%
• Resistance Limit Settings
  • 264
    • 0 - 150 mΩ for 30.1 - 40.0 A
    • 0 - 200 mΩ for 10.1 - 30.0 A
    • 0 - 600 mΩ for 3.0 - 10.0 A
  • 266
    • 0 - 150 mΩ for 30.1 - 60.0 A
    • 0 - 200 mΩ for 15.1 - 30.0 A
    • 0 - 600 mΩ for 3.0 - 15.0 A
  • Resolution: 1 mΩ
  • Accuracy: ± (2% of setting + 2 mΩ)
• Offset Limit Settings
  • 0 - 100 mΩ
  • Resolution: 1 mΩ
  • Accuracy: ± (2% of setting + 2 mΩ)
• Dwell Timer
  • 0, 0.5 - 240.0 sec, (0=continuous), 0.1 sec/step
• Ramp Timer
  • 0.1 sec fixed
• Measurement Current
  • 264
    • 0.0 - 40.0 AAC
  • 266
    • 0.0 - 60.0 AAC
  • Resolution: 0.1 A
  • Accuracy: ± (3% of reading + 0.1 A)
• Ohmmeter
  • 264
    • 0 - 600 mΩ
    • Resolution: 1 mΩ
    • Accuracy: ± (3% of reading + 3 mΩ) for 3 - 5.9 A, ± (2% of reading + 2 counts) for 6 - 40A
  • 266
    • 0 - 600 mΩ
    • Resolution: 1 mΩ
    • Accuracy: ± (3% of reading + 3 mΩ) for 3 - 5.9 A ± (2% of reading + 2 mΩ) for 6 - 60 A

GENERAL SPECIFICATIONS

• Memories 5
• Remote I/O
  • Input: Test, Reset, Interlock
  • Output: Pass, Fail, Test-in-Process
  • Hardware Interlock - a relay on the high voltage output opens when the Interlock signal is disabled.
• Voltage Drop Display (optional)
  • Display the voltage drop across the circuit instead of the resistance measurement.
• Voltage Limit Settings
  • 264 0.00 - 6.00 VAC
  • 266 0.00 - 9.00 VAC
  • Resolution: 0.01 V
  • Accuracy: ± (2% of setting + 0.02 V)
• Offset Limit Settings
  • 264 0.00 - 4.00 VAC
  • 266 0.00 - 6.00 VAC
  • Resolution: 0.01 V
  • Accuracy: ± (2% of setting + 0.02 V)
• Security Option to turn On or Off, when On you can switch between two security levels:
  • 1. Run - Operator can only run a test. No ability to change memory locations or edit test parameters.
  • 2. Mem - Operator can run a test and change memory locations. No ability to edit test parameters.
• Safety Mark CE/cTUVus
• Dimensions (W x H x D) 264 8.5" x 3.5" x 11.81" (215 x 88 x 300 mm) 266 16.93" x 5.20" x 11.81" (430 x 132 x 300 mm)
• Weight 264 9.25 lbs. (4.3 Kg) 266 20.25 lbs. (9 Kg)
