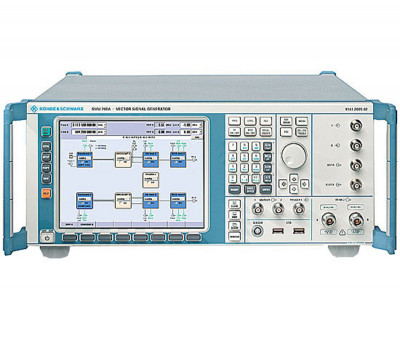

The Vector Signal Generator R&S SMU200A has been designed to meet all requirements encountered in research and development of modern communication systems as well as in their production. The R>5 MHz carrier offset, 1 Hz measurement bandwidth) Excellent ACLR of typically 70 dB for 3GPP FDD Very high level repeatability of 0.05 dB Unrivalled flexibility: Baseband generator with universal coder for realtime signal generation Arbitrary waveform generator with up to 64 MSamples Intuitive operation: Intuitive user interface with graphical display of signal flow (block diagram) Context-sensitive help system Ideal for production: Very short frequency setting times (<3 ms); only 450 us in List mode Electronic attenuator up to 6 GHz over the full level range Connectivity: Can be remote-controlled via GPIB and LAN USB connectors for keyboard, mouse and memory stick&S SMU200A not only combines up to two independent signal generators in one cabinet of only four height units, it also offers unrivalled RF and baseband characteristics. Up to two signal generators in one: Frequency options from 100 kHz to 2.2/3/4/6 GHz for the first RF path Optional second RF path up to 2.2 GHz or 3 GHz Up to two complete baseband paths Outstanding signal quality: I/Q modulator with 200 MHz RF bandwidth Very low SSB phase noise of typ. -135 dBc (f = 1 GHz, 20 kHz carrier offset, 1 Hz measurement bandwidth) Wideband noise of typ. -153 dBc (CW, f = 1 GHz,
