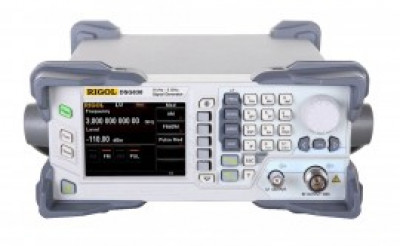

RIGOL DSG815 RF Signal Generator, 1.5 GHz

PRODUCT DESCRIPTION

Offers standard AM/FM/ØM analog modulation, as well as options for I/Q modulation and I/Q baseband output with high signal purity.

Features

• Up to -105 dBc/Hz (typical) phase noise
• Up to +20 dBm (typical) maximum output power
• Higher level of amplitude accuracy, up to 0.5 dB (typical)
• Superb signal stability
• Flexible frequency and amplitude sweep functions
• Complete AM/FM/ØM analog modulation functions
• Standard LF output function
• Powerful pulse modulation function
• System flatness calibration function
• Simple and easy to operate
• Use electronic attenuator to avoid wearing
• Specially designed protection functions
• Digital ALC circuit
• Simple structure
• Occupy the least workbench space
• Occupy less rack space
• Light weight; the handle offers comfortable grip

Max Frequency:               1.5 GHz
Phase Noise:                   <-105 dBc/Hz
Amplitude Accuracy:        <0.5 dB
Frequency range:             9 kHz to 1.5 GHz
Setting time:                     Fixed frequency, temperature range: 20 to 30°C
RF output:                        Impedance 50 Ω (nom.)/ Connector BNC female
Display:                            3.5 inch, TFT LCD 320 (RGB) × 240
Input voltage range, AC:  100 V to 240 V (nom.)
AC frequency range:        45 Hz to 440 Hz
Power consumption:        With all the options: 50 W (typ.), max. 60 W
