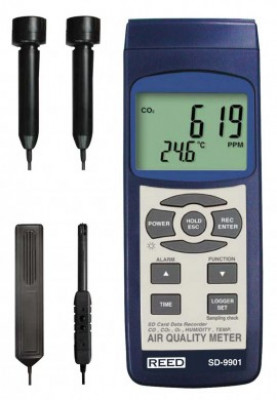

This indoor air quality (IAQ) datalogger measures Oxygen, Carbon Dioxide, Carbon Monoxide, Temperature and Humidity. The SD-9901 is capable of recording readings from 3 probes simultaneously and displays measurements on a large backlit LCD. Using a SD card (max 16Gb), a user can select a desired sampling rate and quickly generate an Excel file on a SD card without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring. Optional PC software also allows a user to track live measurements.
Features
- Measures oxygen (O2), carbon dioxide (CO2), carbon monoxide(CO), temperature and humidity
- Records up to 3 readings simultaneously
- User adjustable audible alarms
- User selectable unit of measure (°F or °C)
- Data hold and Max/Min functions
- Real-time datalogger with integral SD memory card
- User selectable sampling rate from 2 secs to 8 hrs
- Large, easy-to-read backlit LCD display
- Optional PC software features live tracking via USB connection
- Tripod mount for long-term monitoring
- Low battery indicator and auto shut off
Dimensions: Instrument: 7.0 x 2.7 x 1.8" (177 x 68 x 45 mm)
Humidity Probe Length: 7.8" (197 mm)
CO Probe Length: 5.9" (150 mm)
CO2 Probe Length: 7.5" (190 mm)
O2 Probe Length: 5.9" (150mm)
Weight: 0.8lb (350g)
Temperature
Measuring Ranges: 32 to 122.0°F (0 to 50.0°C)
Dew Point: -13.5 to 120.1°F (-25.3 to 48.9°C)
Wet Bulb: -6.9 to 122.1°F (-21.6 to 50°C)
Accuracy: ±1.5°F (±0.8°C)
Resolution: 0.1°F/°C
Humidity
Measuring Range: 5 - 95% RH
Accuracy: >70%RH: ±(3% rdg + 1%RH)
<70%RH: ±3%RH
Resolution: 0.1% RH
CO2
Measuring Range: 0 to 4,000 ppm
Accuracy: < 999 ppm: ±40 ppm
>1,000 ppm: ±5% Rdg
Resolution: 1 ppm
CO
Measuring Range: 0 to 1,000 ppm
Accuracy: ±(5% + 2 ppm)
Resolution: 1 ppm
O2
Measuring Range: 0 - 30% O2
Accuracy: ±(1% + 0.2% O2)
Resolution: 0.10%
