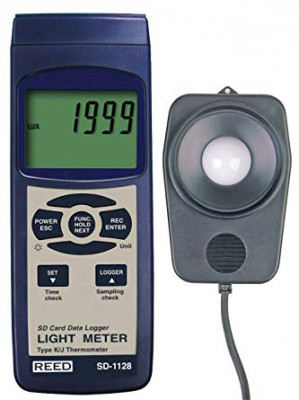

REED SD-1128 SD Series Light Meter, Datalogger, 100,000 Lux / 10,000 Foot Candles (Fc), w/ Temperature

DESCRIPTION

This SD series datalogging light meter has a wide measurement range up to 100,000 Lux (10,000 Foot Candles) and features user selectable sampling rates from 1 to 3600 seconds. Using an SD card (max 16Gb) a user can select a desired sampling rate and quickly generate an Excel file without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring. Optional PC software also allows a user to track live measurements.

Features

• Measures ambient light levels in Foot Candles or Lux
• Photo diode and colour correction filters meet C.I.E. spectrum specifications
• Contact temperature measurement with a type J/K thermocouple option
• Temperature is measured in °C or °F
• Real time data logger with integral SD memory card
• User selectable sampling rate from 1 to 3600 seconds
• Large, easy-to-read backlit LCD display
• Data hold and Min/Max functions
• Optional PC software features live tracking via USB connection
• Tripod mount for long-term monitoring
• Low battery indicator and auto shut off

Measuring Ranges:     Lux: 2,000, 20,000, 100,000
                                    Fc: 200, 2,000, 10,000
                                    Type K Temperature: -148.0 to 2372.0°F (-100.0 to 1300°C)
                                    Type J Temperature: -148.0 to 2192.0°F (-100.0 to 1200°C)

Accuracy:                     Lux: ±(4% + 2 dgt)
                                     Fc: <2,000: ±(4% rdg.+ 2 dgt)
                                     2,000-10,000: ±(4% rdg.+ 20 dgt)
                                     Temp: ±(0.4% + 1.0°C (0.5°F))

Resolution                     Lux: 1, 10, 100
                                      Fc: 0.1, 1, 10
                                     Temp: 0.1°F  (0.1°C)
