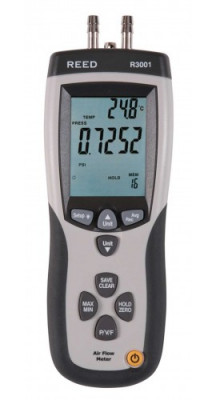

This pitot tube anemometer and differential manometer provides accurate air velocity, airflow and ambient air temperature measurements. The R3001 is capable of capturing maximum, minimum, average and relative readings and features a large dual LCD display with backlit functionality for low lit environments.
Features
- Dual LCD simultaneously displays pressure, air velocity or airflow with temperature
- Max, Min, Avg, Relative and Data hold functions
- Integrated real-time clock time-stamps measurements
- Large, easy-to-read backlit LCD display
- Zero button for offset correction or measurement
- User selectable unit of measure
- Push button calculation of rectangular or circular duct areas
- USB interface and software included
- Tripod mount for long-term monitoring (Tripod not included, can be added to rental for a nominal fee)
- Low battery indicator and auto shut off
Specifications:
Pressure
Measuring Ranges:
±5000 Pa; 0.752 psi; 50.00mbar; 20.07 inH2O; 509.8 mmH2O
Accuracy: ±0.3% FS
Resolution:
1 Pa; 0.1 mmH2O; 0.01 mbar / inH2O; 0.0001 psi
Repeatability: ±0.2% FS
Linearity/Hysteresis: ±0.29% FS
Max Pressure: 10 psi
Air Velocity, Air Volume and Temperature
Measuring Ranges:
1 to 80 m/s; 200 to 15,733 fpm; 3.6 to 288 km/h; 2.24 to 178.66 mph; 2.0 to 154.6 knots
Air Volume: 0 to 99,999 (CFM/CMM)
Temperature: 32 to 122°F (0 to 50°C)
Accuracy: ±2.5% rdg.
Air Volume: ±1% FS
Temperature: ±1.5°C (3°F)
Resolution:
0.01 m/s; 1 fpm; 0.1 km/h; 0.01 mph; 0.1 knots; 0.001 CFM/CMM; 0.1°F/°C
General Specifications
Display: 5-digit, Dual LCD Display Backlit Display: Yes
Data Hold: Yes Min: Yes Max: Yes Average: Yes
Differential Pressure: Yes Zero Function: Yes
Over range Indicator: Yes Under range Indicator: Yes
Air Volume Calculation (CFM/CMM): Yes
Datalogging Capabilities: Yes Real-Time Clock and Date Stamp: Yes
Response Time: 2 times/sec.
Internal Memory: Yes
Auto Shut-off: Yes (after 20 mins)
Tripod Mountable: Yes
Low Battery Indicator: Yes
Power Supply: 9V battery
PC Connectivity: USB Cable (Included)
Software Yes (included) Software OS Compatibility: Windows XP, 7, 8 and 10
Operating Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: 14 to 140°F (-10 to 60°C)
Operating Humidity: 10-80%
