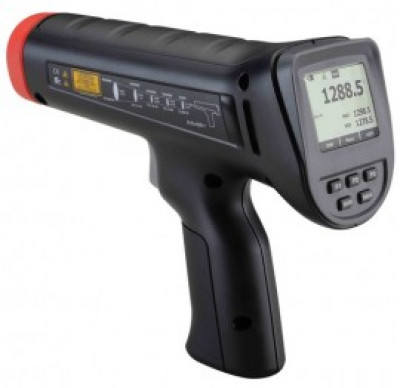

Raytek RAYR3IPLUS2ML High Temp. Infrared Thermometer with Dual Laser, 752 to 3632°F

PRODUCT DESCRIPTION

Designed in accordance with industry standards to meet process performance requirements in hot environments, the 3iPLUS features a superior Distance-to-Spot (D:S) ratio that allows users to measure high temperature targets from longer distances, ensuring accurate temperature readings and operator safety.

Features

• A stronger, simpler, safer infrared thermometer with innovative features for enhanced ease-of-use to increase operator efficiency
• Combines superior Distance-to-Spot (D:S) ratio with high accuracy and a robust feature set that provides excellent non-contact temperature measurement solutions for process temperature detection and fault previewing
• Designed for high temperature applications, it covers a temperature range of 400 to 2000ºC (752 to 3632ºF)
• Displays MAX, MIN, DIF, and AVG temperatures
• Dual laser for precise measurement of smaller targets, the measurement spot is indicated at the point the two laser beams meet
• High optical resolution (250:1) ensures accurate temperature readings at longer distances
• "Red Nose" heat resistant warning-detector and alarm ensures operator safety and efficiency
• Audible alarms for target temperature/ambient temperature/low battery
• Compensates for energy reflected by the background around your target so it doesn't affect your reading
• Adjustable emissivity and predefined emissivity table
• Transmissivity and background temperature compensation
• Profile definition to convenient measurement
• Curve to display trend with selectable time span
• Intuitive user interface for easy parameter set-up, enabling ‘on-site’ display of data analysis and trending
• DataTemp® Windows PC software supports real-time communication, data storage, graphing and analysis
• Data storage: up to 4,900 data points with location, date, and time stamp
• Includes a mobile app for quick data transfer and collaboration, and can be used temporarily as an online thermometer
• Fast and easy data transfer to PC or smartphone, using USB or Bluetooth
• Longer operational cycle (24 h) on rechargeable batteries
• Locking trigger and tripod mount allow for continuous operation
• Rugged design reduces risk of damage and minimizes service costs

Specifications:
Temperature Range:  400 to 2000ºC (752 to 3632ºF)
Resolution:                 Below 1000ºC: 0.1ºC
Accuracy:                   ±(0.5% of reading +1ºC) (<2700ºC/4892ºF)
Repeatability:             ±(0.3% or reading ±1ºC)
Emissivity:                  Adjustable, 0.10~1.00
Optical Resolution:    250:1 (Distance to Spot Size)
Spectral Response:   1.6µm
Response Time:        40 mSec
