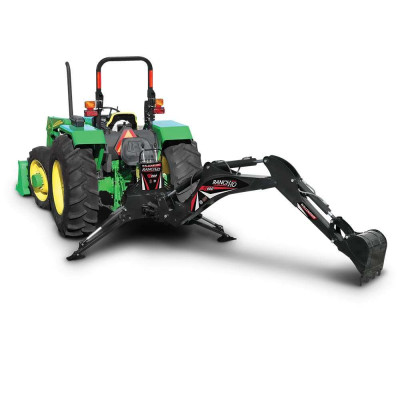

Rancho GX920 Compact Backhoe

PRODUCT DESCRIPTION

GX920 COMPACT BACKHOE
9 ft. 4 inch Digging Depth
141" Reach from Swing Post
Tractors with 45-100 HP
750 LBS Lift Capacity

The large GX920 extends the usefulness of 45–100 HP tractors with digging capabilities of 9-feet deep. Trenching for footings and excavating to spec becomes quick and easy without the added expense of a single-purpose excavator. The digging bucket is built using AR400-strength steel, ensuring rugged longevity.

FEATURES:

• Hardened Steel Bushings
• Curved Boom
• Swing Cushioning
• Dual Swing Cylinders
• Greaseable Pins
• Stabilizers
• Replaceable Teeth
• Pick Your Colour
• Subframe Mounting
• 3-Point Hitch Mount
• Skidsteer Mount

SPECIFICATIONS:

• DIGGING DEPTH: 9'4"
• BOOM LIFT CAPACITY:750 LBS.
• TRANSPORT HEIGHT (WITH BOOM FULLY RETRACTED): 92"
• TRANSPORT WIDTH (WITH STABILIZERS UP): 42½"
• LOADING HEIGHT: 89"
• GROUND CLEARANCE: 10½"
• TRANSPORT LENGTH: 81"
• OVERALL OPERATING HEIGHT (FULLY RAISED): 135"
• REACH FROM SWING POST: 141"
• BUCKET ROTATION: 180°
• SWING ARC: 180°
• STABILIZER WIDTH (SPREAD): 89"
• OPERATING PRESSURE: 2250 PSI
• SAE* DIPPER BOOM DIGGING FORCE: 3200 LBS.
• SAE* BUCKET DIGGING FORCE: 3925 LBS.
• HYDRAULIC VOLUME REQUIREMENTS: MIN. 5 GPM
• RECOMMENDED TRACTOR HP: 45-100
• RECOMMENDED SKIDSTEER REQUIREMENTS (SSQT): 30-100
• BUCKET SIZES AVAILABLE: 9, 12, 15, 18, 24"
• 3 POINT HITCH: CAT I (PT300) / CAT II (PT322)
• MAIN BOOM CYLINDER DIAMETER: 3"
• DIPPER CYLINDER DIAMETER: 2.5"
• BUCKET CYLINDER DIAMETER: 2.5" (x2)
• SWING CYLINDER DIAMETER: 2.5"
• STABILIZER CYLINDER DIAMETER: 3"
• SHIPPING WEIGHT: 791 LBS.
