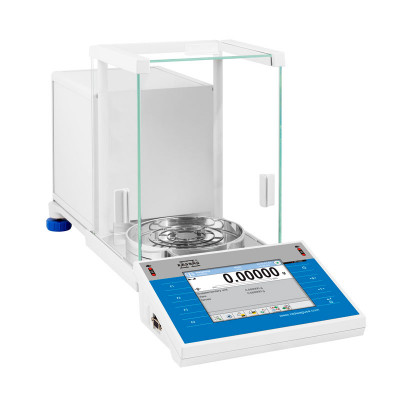

Radwag XA 82/220.4Y Analytical Balance

DESCRIPTION

DATASHEET
Max capacity [Max]
82/220 g
Minimum load
1 mg
Readability [d]
0.01/0.1 mg
Tare range
-220 g
Repeatability
0.007/0.06 mg
Linearity
±0.06/0.2 mg
Eccentric load deviation
0.2 mg
Sensitivity offset
2×10⁻⁶×Rt
Sensitivity temperature drift
1×10⁻⁶/°C×Rt
Sensitivity stability
1×10⁻⁶/Year×Rt
Minimum weight (USP)
14 mg
Minimum weight
1,4 mg
Weighing chamber dimensions
170×200×220 mm
Stabilization time
4 s
Sensitivity drift
1ppm/°C in temperature +15 - +35 °C
Working temperature
+10 - +40 °C
Atmospheric humidity
40% ÷ 80%
Power supply
13.5 ÷ 16 V DC / 700 mA
Adjustment/Calibration
internal (automatic)
Display
5.7” colour resistive touch screen
Interface
2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs, Wireless Connection
Net weight/Gross weight
12.7/16.4 kg
Pan Size
ø 90 mm
Packaging size
715x385x485 mm
