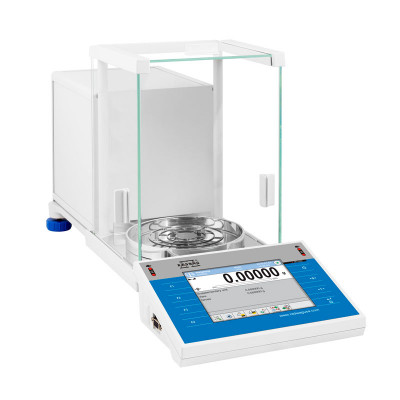

Radwag XA 210.4Y Analytical Balance

DESCRIPTION

DATASHEET
Max capacity [Max]
210 g
Minimum load
1 mg
Readability [d]
0.01 mg
Tare range
-210 g
Repeatability
0.007 mg
Linearity
±0.1 mg
Eccentric load deviation
0.1 mg
Sensitivity offset
2×10⁻⁶×Rt
Sensitivity temperature drift
1×10⁻⁶/°C×Rt
Sensitivity stability
1×10⁻⁶/Year×Rt
Minimum weight (USP)
14 mg
Minimum weight
1,4 mg
Weighing chamber dimensions
170×200×220 mm
Stabilization time
4 s
Sensitivity drift
1ppm/°C in temperature +15 - +35 °C
Working temperature
+10 - +40 °C
Atmospheric humidity
40% ÷ 80%
Power supply
13.5 ÷ 16 V DC / 700 mA
Adjustment/Calibration
internal (automatic)
Display
5.7” colour resistive touch screen
Interface
2×USB, 2×RS 232, Ethernet, 4Inputs/4Outputs, Wireless Connection
Net weight/Gross weight
12.7/16.4 kg
Pan Size
ø 90 mm
Packaging size
715x385x485 mm

OVERVIEW
Innovative 2-point adjustment system
Brand new adjustment system guarantees the highest measurement accuracy. It minimizes linearity errors simultaneously providing reliable indications for the whole weighing range.

Faster measurement with the new CPU
4Y balances feature Dual Core 2 x 1 GHz processor which delivers noticeable performance improvements including faster operation and shorter stabilization time retaining high repeatability values.

Monitoring and elimination of electrostatics
Installation of an additional deionizer module in a weighing chamber facilitates automatic detection and elimination of electrostatics effect to which both, sample and container intended for measurement may be subjected.

8 GB of memory – more data management possibilities
8 GB of memory offers possibility of recording data in a form of complex reports. Time and statistic data diagrams on series of weighments are another useful option.

The best possible repeatability and USP regulations conformity
The best weighing accuracy and repeatability – with sd ≤ 1d combined with USP regulations conformity (Section 41 and 1251) make 4Y balances a new standard for mass measurement quality.

Ergonomics and safety
Wireless communication between balance terminal and a weighing unit make it possible to comfortably operate 4Y series balances in laminar air flow cabinets and fume cupboards.

Remote control operation
Wireless Connection offers wireless transfer of data recorded by 4Y balance to any portable device powered by iOS or Android systems using special applications intended for data management.

Data safety
Every single 4Y balance features ALIBI memory designed to provide protection and automatic recording of your measurements. Options such as data preview, copying and archiving are also
available to users.
