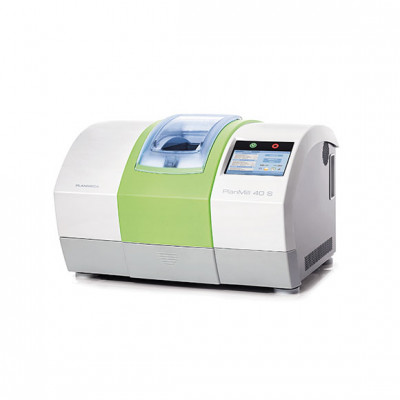

From high-volume dental clinics with multiple locations to solo practitioner offices, Planmeca PlanMill 40 S is a dual-spindle workhorse milling unit that efficiently mills accurate restorations with superior integrity for same-day restorations.
The Planmeca PlanMill 40 S is designed with SMART technology that allows the mill to operate intuitively for a more user-friendly experience. Its SMART software calculates custom milling paths to enhance restoration performance. With an automated tool changer, self-diagnostic reports, alerts for block material usage and tool wear, a guided maintenance wizard, and an easy-to-follow tutorial, the need for a technician is greatly reduced.
Overall functionality of the mill has been restructured to deliver a higher level of efficiency during the milling process. The Planmeca PlanMill 40 S manufactures a more refined, smoother polished appearance due to increased spindle speeds.
• High speed (maximum: 100,000 rpm)
• 6-axis dual-spindle for more refined, polished restorations with greater detail
• Automated tool changer
• Expanded milling blocks
• SMART technology software with custom milling paths, system reports, cleaning wizards and guided cleaning wizards
• Direct dive force motors – optimal milling performance and durability
Specifications
- Weight: 160 pounds
- Width: 26 in (661 mm)
- Height:17.4 in (442 mm)
- Depth: 21.4 in (544 mm)
- Voltage:100/240 VAC
- Frequency:50/60 Hz
- Power Output:1000 W
- Operating Conditions:
- 59-95° F (15-35° C)
- 0-90% relative humidity
- Maximum altitude 6,592 ft (2000 meters)
- Storage Temperature:-40-158° F (-40-70° C)
- Automated tool changer:10 tool positions
- Data connection: Cat5 or Cat6 Ethernet cabling
- Cooling lubricant tank: 3.4 liters
- Spindle: Maximum speed 100,000 rpm
Air supply requirements:
- Pressure and flow:
- Constant 3.5-9.0 bar (50-130 psi)
- Minimum 60 l/min (2 cfm)
- Air purity:
- Solid contaminants (class 3) filtration level better than 5 μm for solids
- Water content (class 4)
- Maximum pressure dew point +3°C; total oil content (class 3)
- Maximum oil content, 1mg/m3
