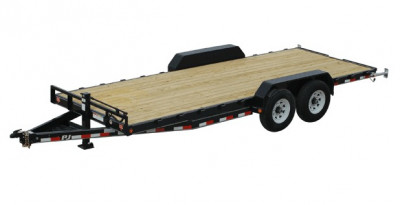

PJ Trailers 6\" Channel Equipment (CC)

PRODUCT DESCRIPTION

Standard Features

• 14,000 lb. G.V.W.R.
• 7,000 lb. x 2 G.A.W.R.
• Adjustable 2 5/16” Ball Bulldog Coupler
• Safety Chains
• 1 - Drop Leg Jack (10,000 lb.)
• 2 - Dexter E- Z lube Brake Axles (7,000 lb.)
• 6 Leaf Slipper Spring Suspension
• 4 - 16” White Spoke Wheels
• 4 - 235/80R16 Radial Tires (3,520 lb)
• Stake Pockets
• Electric Breakaway Kit w/ Charger
• 9” x 72” Treadplate Removable Steel Fenders
• 5’ Channel Ramps w/ Holder
• Dual Bulldog Rear Support Jacks
• 6” Channel Frame & Tongue
• 3” Channel Crossmembers 16” on Center
• 2” Treated Pine Lumber Deck
• 83” Wide Deck
• DOT Approved Flushmount Lifetime LED Lights
• Sealed Bargman Wire Harness w/ 7-Way RV Plug
• Sand Blasted, Acid Washed, Powder Coated
• Tool Tray In Tongue
• GN Option Equipped with 2 Jacks
• GN Equipped w/Lockable Front Toolbox

Notes:
*** 8” I-beam on Goosenecks ***
*** MAX GVWR Rating 24,000 with Triple 8k Axle Option and 24k+ Rated Coupler. ***
Trailer will have 80” Frame with 8k, 7k Hydraulic Disc Brake, Torsion and Drop Axles.
Bumper Pull Tongue Length (4’ 7”), Gooseneck Length (8’ 4”).
***Rear support jacks standard on 16’ or longer w/5200# axles or larger and also including ramps without support legs. Support legs only come standard on foldup ramps and HD gate options***
