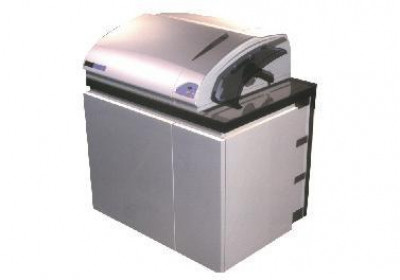

The PE Sciex ELAN 6100 ICP/MS System (Inductively Coupled Plasma Mass Spectrometer ICP ) is a 5th-generation ICPMS system featuring a stable torch mount that eliminates the need for xyz adjustment and a quick change lens design.
System includes:
PE Elan 6100 ICP/MS
Perkin Elmer/Gilson MiniPlus Peristaltic Pump
Computer with Software
2 x Internal Vacuum Pumps
PolyScience Chiller
Optional:
PE ICP Autosampler
ADDITIONAL INFORMATION
Specifications:
Dimensions (w x d x h in cm): 99 x 73 x 117
Mass filter: Quadrupole; binary gold metallized ceramic, producing hyperbolic field
Detector: dual stage discrete dynode electron multiplier (off-axis)
Dynamic range (orders of magnitude): 8 in a single continuous scan; simultaneous analog and pulse counting
Abundance sensitivity: 107 at 1 amu higher mass side; 106 at 1 amu lower mass side
Background level: < 10 cps
Scanning rate: 2400 amu/s
Vacuum system 3 stages: 1 rotary pump, 2 turbomolecular pumps backed by 1 rotary pump
ICP generator: free-running
Load coil: Ar-cooled PlasmaLok coil
Torch injector demountable (available in various materials and inner diameter)
Sensitivity (Mcps/ppm): > 30 In, > 25 U, >4 Mg
Detection limits: (3s, ng/L) < 0.5 U and In, < 2 Co, < 15 Be
