Paladin BRADCO Tilt Attach

PRODUCT DESCRIPTION

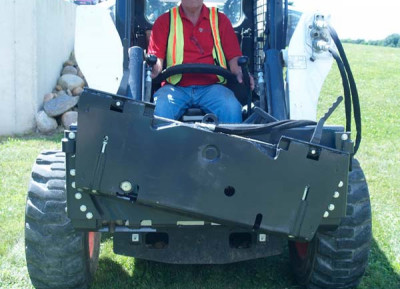

Tilt Attach

The Bradco Tilt Attach allows full utilization of your skid steer on hilly terrain. It attaches to a skid steer universal hitch to allow 18° left of right of tilt off center line. The Tilt Attach tilts buckets and landscaping implements for more precise grading and leveling. The Valve Package is mounted on Tilt Attach for use with hydraulically powered attachments. Simple connection by electric wiring keeps valves and hoses out of operator's cabin. A large spherical ball bushing in the center pivot allows for extra strength and durability. This product is also available CE certified.

Features

• Attaches to skid steer universal hitch to tilt 18 degrees left and right
• Tilts buckets and landscaping implements for precise grading and leveling
• Trenchers can be tilted to cut a vertical trench

Specifications

• Width 46.8”
• Height 18.5”
• Depth 4.2”
• Cylinder Bore In 2.5”
• Rod Diameter 1.3”
• Tilt Degree ±18°
• Lift Capacity 4,200 lbs
• Weight 422 lbs

Bradco Tilt Attach, by Paladin, allows full utilization of your skid steer on hilly terrain. It attaches to a skid steer universal hitch to allow attachments to tilt up to 18° to the left and right of level. The Tilt Attach tilts buckets and landscaping implements for more precise grading and leveling.

TILT ATTACH
• Heavy duty provides better utilization of skid steer on uneven terrain
• Optional valve package is mounted to Tilt Attach for use with hydraulic powered attachments
• Simple connection by electric wiring keeps valves and hoses out of operator’s cabin
• Large spherical ball bushing in center pivot allows extra strength and durability
• Abrasion resistant plate steel allows longer life
