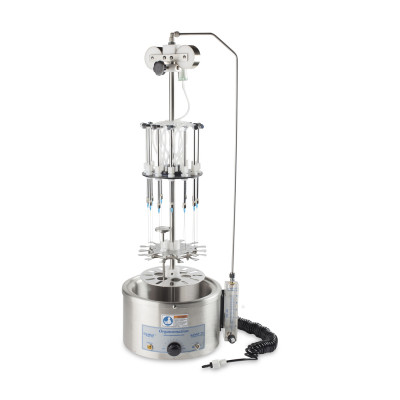

Organomation N-Evap 111 Nitrogen Evaporator

PRODUCT DESCRIPTION

The 12 position N-EVAP nitrogen evaporator with bath is a compact unit that allows for up to 12 samples to be evaporated simultaneously.  At each individual sample position the gas flow can be controlled via a precision needle valve.  This is ideal for the simultaneous evaporation of samples with varying evaporation end points. The sample tray has a spring tensioner which allows any test tube between 10-30 mm to be processed without any modifications to the instrument. An optional small sample holder allows samples with an outside diameter of 5-16 mm to be processed. Features include:

• Nitrogen filter
• Adjustable flow meter, 0-10 lpm
• High pressure phthalate free tubing for safety, Teflon tubing for no contamination
• High temperature limit switch for safety
• Dual band spring hoist assembly (except in dry bath model)
• Precision needle valve tube assembly
• Needles, 4 inch x 19 gauge with chrome plated brass hub and stainless steel shaft

Specifications

• Bath type:  water
• Number of sample positions: 12
• Overall dimensions:  13” x 11” x 31” high
• Gas flow meter:  0-10 lpm
• Stainless steel needles:  4.0 in x 19 ga
• Sample tray Lift mechanism: Dual band spring hoist assembly
• Bath temp range:  30 – 90oC
• Heater electrical:  550 watts
• Heater Temp control:  mechanical thermostat;   ± 2oC
