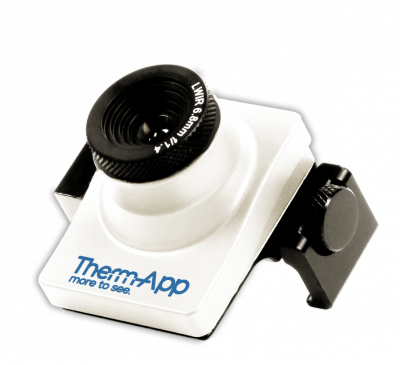

OPGAL Therm-App® MD Mobile Thermal Imaging Device for Body Temperature Measurement

DESCRIPTION

In 2003, OPGAL was the first on the market employ thermal imaging cameras to measure the skin temperature of airline passengers passing through airport checkpoints located within SARS-affected regions. People exhibiting elevated skin temperatures, which may indicate a fever, could then be isolated for further evaluation to determine the cause. Similar quarantine procedures may help minimize the spread of the Corona Virus outbreak. ThermApp MD is a vital tool for fever detection in high-risk areas.

ADDITIONAL INFORMATION

• Type: Thermal system
• Frame rate: 8.7Hz
• Resolution: 384 x 288 pixels
• Platform: Android

FEATURES

• Uniquely calibrated to measure temperature differences on human skin.
• Supported devices: Android 8 and up.
• Includes Mini Android Single Board Computer  source.
• Available in a 6.8mm and 19mm lens configuration.

SMARTPHONE

• Minimal Requirements: Android 8 and above, supporting USB OTG
• High Resolution Touchscreen: Yes *

SOFTWARE

• Measurement Tools:
  • Center Spot
  • Hot/cold threshold based pallets
  • Manual and auto scale
• Measurement Settings: Emissivity, Reflected Temperature
• Annotations: Text & Video Annotations
• Output: Video & Audio (H.264), Snapshot (IR, VIS, Metadata)
• Instant Share: Dropbox, Email, SMS
• Android Share: Via media gallery
• Color Palettes: Rainbow, Iron, Vivid, Grey, Red Hot, Blue Cold, PSY, Lava, Green
• Temperature Scale Range: Auto, Manual
• Zoom: Continuous digital zoom using touchscreen
• Feature updates: Yes (via Google Play)
• Maintenance: Bad pixel repair utility
• Quick access menu: One touch
• Package includes:
  • Thermal Camera
  • OTG Cable
  • Mini Android Single Board Computer
  • 100-200VAC power cable

MEASUREMENT

• Resolution: 384 x 288 pixels (>110,000 pixels )
• Accuracy: +/-1°C @ target temperature ranges of 25°- 45° C (@ ambient temp. of 25°C)
• Sensitivity: NETD <0.07°C
• Temperature Range: 0 – 50 °C
• NUC Calibration: Shutterless

CAMERA HARDWARE

• Imager: 384 x 288 microbolometer LWIR 7.5 -14um
• Optics: 6.8mm lens (55° x 41°). Optional lenses available.
• Focus: Manual, 0.2m to infinity
• Frame Rate: 8.7Hz
• Weight: 123 grams / 4.33 ounces
• Size: 55 x 65 x 40mm (2.16 x 2.55 x 1.57in)
• Operating Temperature: -10°C to +50°C (14°F to +122°F)
• Storage Temperature: -20°C to +60°C (-4°F to +140°F)
• Power Supply: No battery, 5V over USB OTG cable, power consumption < 0.5W
• Certifications: CE, FCC, RoHS
• Encapsulation: IP54
• Visible Camera: Typically 8 megapixels*
• Mount/Handle: Standard tripod mount, using 1/4″-20
• Device Attachment: Clip-on for smartphone (5 -10cm span)
