Northwest Instrument NEXPK800 Construction Laser Package

DESCRIPTION

Ideal for indoor use, the Northwest Instrument NRL800K Electronic Horizontal Rotary Laser provides great results for wall and tile floor installations, layout partitions, matching existing slopes and vertical alignment. Horizontal self-leveling within ±5 degrees, this rotary laser offers an accuracy of ±1/16 inch at 100 feet. With an included laser receiver, it has an operating range of up to 2,000 feet

The NRL800K features an onboard bump sensor that prevents error and saves time. For accuracy and effective leveling in both horizontal and vertical directions, this laser level features electronic servo auto level motors. It comes with a 600 rotation-per-minute speed and variable scan angles of 10, 20 degrees and a dot angle.

With an IP54 protection rating, the NRL800K laser is protected from dust and water splashes from any direction. Also, it uses 635-nanometer visible red laser. As an extra feature, it features 5/8-11 screws for easy tripod mounting.

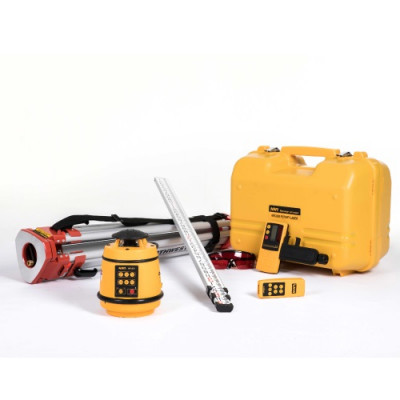

The NEXPK800 package comes with both a tripod and a grade rod. The grade rod allows to determine differences in elevations and can be attached to a laser receiver. Also included, the tripod has a three-legged frame which supports the rotary laser while doing leveling tasks. Plus, it provides stability regardless of terrain.

ADDITIONAL INFORMATION

Features:

• Horizontal self leveling
• Electronic servo auto level system
• Multiple scan mode of 10°, 20° and dot
• Bump sensor prevents costly mistakes
• Industry grade dust and water resistant (IP54)

Specifications:

• Laser beam: Horizontal
• Wave length: 635 nm
• Rotation speed: 600 rpm
• Operating range: 2,000 feet Radius with detector
• Leveling accuracy: 1 / 16" @ 100' horizontal
• Self leveling range: ± 5°
• Self leveling method: ± Electronic servo motors
• Bumper sensor: On board
• Operating temperature: -10° - +40°
• Power source: Rechargeable battery
• Tripod adapter: 5/8 x 11 thread
