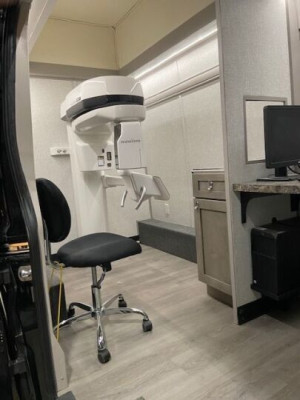

Mobile Conversions International High Top Van Mobile Dentist Imaging System with 3D Dental CBCT (Cone Beam Computed Tomography)

DESCRIPTION

Our turnkey Mobile Dental Unit transforms your practice into a full-service imaging suite, featuring high-performance CEFLA CBCT technology for advanced diagnostics on the move. This mobile solution empowers oral surgeons and specialists to expand their reach across multiple locations while seamlessly transmitting high-resolution scans directly to the lab for immediate workflow integration. To ensure total peace of mind, we provide a comprehensive warranty that includes on-site engineering support & technical repairs if necessary throughout your lease. Equipment training provided if needed.

ADDITIONAL INFORMATION

DENTAL EQUIPMENT INCLUDED:
: NewTom Giano HR 3D/Pan/Ceph Advanced 13X16. Machine installed. # W7GNHR3DS1
3D ADVANCED CONFIGURATION
• General dentistry
• Implantology
• Endodontics
• Gnathology
• General orthodontics
• Otorhinolaryngology

FOV 13 x 16 cm
Single volume maxillofacial image obtained automatically: a complete view of the maxillary sinuses and of the entire dental arches. Also ideal for upper airway examinations.

NewTom GiANO HR provides a wide range of 2D and 3D examinations that are ideal for diagnoses concerning either complete or partial dentition, single dental arches and all maxillofacial regions. 3D volumes with FOV from 4 x 4 cm and 16 x 18 cm and resolution up to 68 μm – which is among the highest resolution available on the market – allow users to assess maxillary sinuses, frontal sinuses, temporomandibular joints, airways and the internal ear.

• Advanced Kinematics for quality images
• Intelligent Autoadaptive pictures treatment
• MultiPan mode, allows to choose the best panoramic view among a set of five images in a single scan
• Safebeam™ technology automatically sets the correct and lowest-necessary dose for the patient
• Wide range of 3D protocols with FOV from 4x4 up to 16x18
• Complete and user-friendly soft-touch console
• Ceph mode and three different 3D configurations: PRIME (10x8), ADVANCED (13x16) and PRODFESSIONAL (16x18) Integrated NNT software platform
• ensors technology
• CMOS cls
• Patient alignment
• 4 laser guides
• Patient positioning
• 7 head contact points
• ECO mode
• Scan time 2D: 6 sec
• Scan time 3D: 6.4 sec
• Supported protocols
• DICOM nodes: IHE compliant (Print, Storage Commitment, WorkList, MPPS, Query Retrieve), DICOM 3.0, Twain, Vdds
• Minimum available work space requirement
• 2D and 3D PAN: 54.7 x 44.8 inches
• 2D and 3D CEPH: 54.7 x 70.9 inches
• User-friendly for patients in wheelchairs

--
BODY CONSTRUCTION:

• The wall construction shall consist of the following:
• 2” of Tuff-R Cellotex installed in doors, walls and ceiling. Additional side wall insulation included.
• The door is insulated and covered with a panel to match the interior décor.
• The sealed, easy-clean, waterproof woodgrain floor will allow no external moisture buildup inside coach.
• 2” thick closed cell foam insulation with an R-factor of up to 14 for ceiling, sidewalls and doors to maintain the most comfortable working environment for staff and patient.
• Integrated step system located outside the sliding door to gain entrance to the diagnostic suite. A handrail is added for increased safety when entering and exiting.
• Custom interior will include latches to prevent opening while in transit. Countertop Corian or equivalent.
• (2) flush-mounted LED string lights, front to rear with dimmer switch.

ELECTRICAL SYSTEM:

• AC Electrical System: 120 VAC single-phase system rated for the anticipated load. 50A/120vac rated distribution panel configured with UL listed circuit breakers.
• Generator battery system includes Separate generator battery + charging system via Shorepower hook-up during operation periods when the vehicle engine is not running to prevent depletion of generator battery power.
• 6.5 KW Cummins gasoline quiet Onan Generator 7.0 EVAP. (60db(a)) at 50ft.
• One (1) 13,500 BTU roof mounted central heating and air conditioning system with overhead delivery is provided. A 5200 btu floor heater is also included.
• Hydraulic Heavy-duty commercial (4) point stabilizing system with individual controls are provided and located at the passenger side rear door for easy, fast leveling and service.
• The technologist area Corian Work surface for computer located on a 12” base cabinet
• Leaded / lead-lined divider wall curtain with leaded patient viewing glass
• Divider insulated wall, full width located directly behind CBCT system
• Fire Extinguisher
• Smoke Detector
• CO2 Detector
• Heavy-duty rubber covered 50’ long SO 10-2 with ground shoreline cord provided. Generator/shore power transfer switch is also provided.

ADDITIONAL RENTAL REQUIREMENTS:
Following items must be provided to the Supplier and KWIPPED prior to the delivery of the equipment:

• Copy of Renter's Driver's License
• Proof of $1,000,000 of Property Insurance listing the Supplier as the Additional Insured
• Proof of $2,000,000 of Liability Insurance listing the Supplier as the Additional Insured

METHOD OF PAYMENT REQUIREMENTS:​

• First and Last Month's Rent will be collected by KWIPPED immediately when the order has been placed; add (1) Month's Rent to the 'Due Upfront' showing above on this quote to see the total amount due upfront

MINIMUM RENTAL TERM:

• 1-MONTH / 30-DAY MINIMUM RENTAL TERM REQUIRED; customer will be required to pay the full Monthly Rental Payment to KWIPPED if an early rental termination request is submitted
