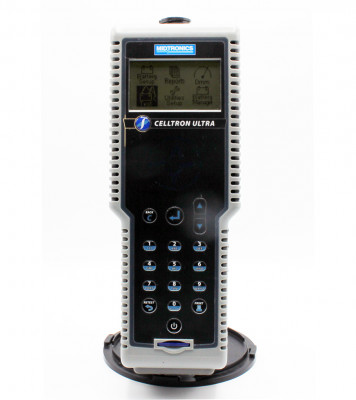

Midtronics CTU-6000 Kit

PRODUCT DESCRIPTION

The Midtronics CTU-6000 is a battery testing and maintenance tool that can be applied to a variety of stationery devices including uninterruptible power systems (UPS), telecommunications backup power, utility switching power, and more.
Features and benefits of Midtronics CTU-6000:

• Advanced Conductance Technology: enhanced methodology enables accurate and repeatable testing in the presence of ultra-high electrical interference
• Battery Data Manager: software and data management techniques allow for the easy establishment of battery reference/baseline values when data is not readily available
• Lighted probes: the industry's first lighted probes increase visibility in tight battery cabinets, enhancing safety and efficiency
• Digital Multi-meter: Versatile features allow for the measurement of AC and DC voltage and current; scope function displays AC ripple current and more

The Midtronics CTU-6000 complete stationary battery analysis kit includes everything needed to perform appropriate maintenance on UPS, Telecom, Power Utility and other stationary batteries. The CTU-6000 Kit includes lighted probe extenders for added safety and efficiency (an industry first), PC software for analysis, an infrared strip printer and more, all in a rugged hard case. This kit makes battery maintenance simple, safe, and portable!

Specifications

• Conductance range: 100-19,900 Mhos/Siemens
• Battery Capacity Range: 10 Ah to 4000 Ah approx.
• Voltage Range: 1.5-20.0 Volts DC
• Display: LCD-FSTN, 128 X 64 pixel graphical display with green LED backlight
• Test Data Storage: 500 strings of 480 tests
